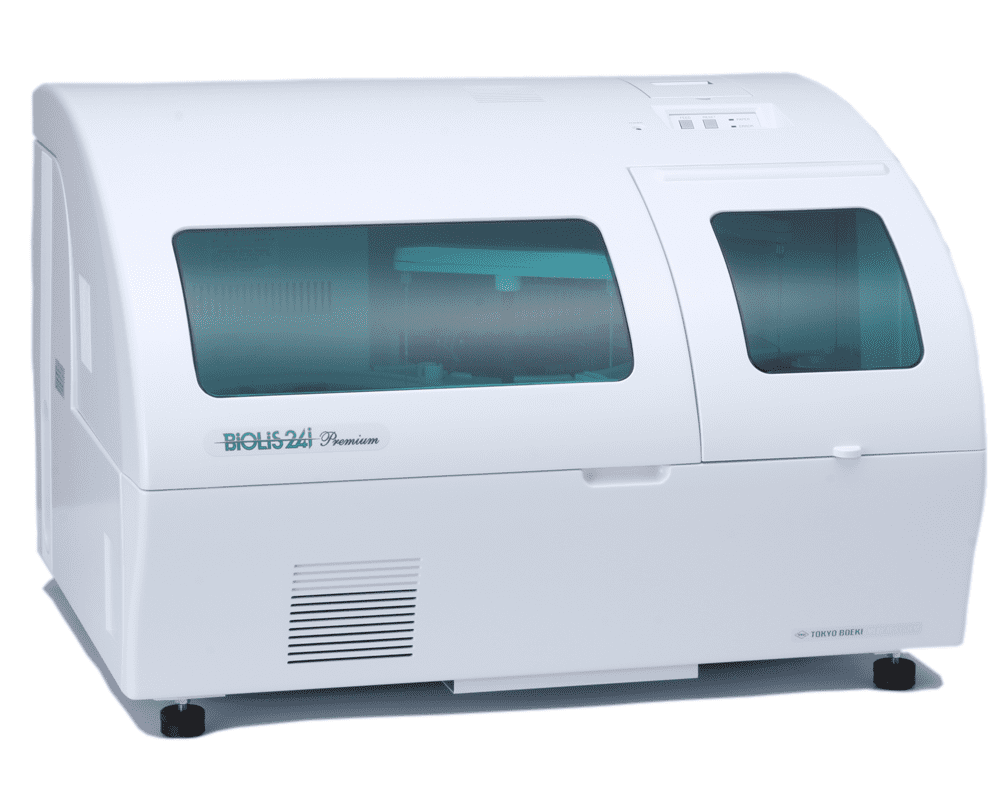

Tokyo Boeki Biolis 24i Premium, Chemistry Analyzer

Description

This low-cost, eco-friendly benchtop chemistry analyzer has a menu of 100 tests, including general chemistry, special chemistry, and drugs of abuse tests. It can run over 400 tests per hour and can analyze 3–30uL of serum, plasma, or urine using endpoint, rate, and turbidimetry analytical methods. Bi-directional interface and barcoded primary tube sampling provide positive sample ID and eliminate the need for instrument programming.

The system uses semi-permanent reaction cuvettes and an integrated distilled water system to eliminate the need for expensive disposable cuvettes and water cubes. A thorough, 10-step cuvette wash station administers heated alkaline and acid washes before and after each run. The analyzer is compatible with all LIS systems, eliminating the need for paper documents.

Reagents are barcoded, ready-to-use liquids. 30-day on-board reagent stability and 14-day calibration stability allow for easy daily start-up.

Confidence in results

Automatic Antigen Excess Check
Minimal carry over through contact free Sample/Reagent air mixing
Intuitive software and robust hardware

Increase productivity

1st result in 15 min, subsequent results every 30 seconds

Up to 240* tests/hour

On-board reagent cooling/monitoring

Wide measuring range minimizes re-runs ensuring optimal reagent usage and throughput

Reliable

Mean time between failure of up to 258 days

Quick start up and shut down

Very low downtime ensuring continuity of laboratory service.

Additional information

Manufacturer	Tokyo Boeki

Specifications

Onboard reagent cooling (10°C + 2°C)
Dual reagent probes with automated washing between reagent addition
Reagent level detection and reagent management
Automatic reagent changeover

Sampling Module

Sample Type: serum, plasma, urine
40 sample + 5 STAT positions per carousel: 30 primary/secondary tube with barcode reading
Sample tubes accepted: disposable cups, secondary tubes, 5mL, 7mL, 10mL primary tubes
Integrated sample barcode reader. Acceptable Bar Codes: Code 39, Code 128, ITF, NW-7. Reads up to 18 digits.
Minimum sample volume 150µL
Automatic sample dilution
Automatic rerun
Sample level detection
Automatic interior/exterior sample probe washing

Reaction Module

60 semi-permanent acrylic cuvettes
Reaction temperature 37°C + 0.1°C
Automatic 10-step, high temperature cuvette washing system
Dual-chamber, air pressure enhanced mixing

Optics Module

Wavelength: 12 discrete
Automatic cell blank monitoring
Halogen lamp: 2000 hours with lamp-life monitor
Silicon photo-diode detectors

Software

Windows®-based
LIS compatible (RS-232C bi-directional interface)
Levy-Jennings QC monitoring
Water supply, wash solutions and waste level alarms

Physical Specifications

Dimension: 31.5″/800mm (Width) x 25.2″/640mm (Depth) x 20.5″/520mm (Height)
Weight: 210 lbs / 96kgs
Power requirements: AC 100/115/230 V 50/60 Hz
Rated power consumption: 600 VA
Water type: Deionised Water
3L Acid and 3L Alkali wash bottles
10L DI water reservoir, 10L waste container and 5L back-up waste and water containers

Test Menu

Clinical chemistry	Immuno-assay	TDM	Coagulation	ISE
ＬＤ（ＬＤＨ）	ＣＲＰ	ＢＲＰ	ＡＴⅢ	Na
ＡＳＴ（ＧＯＴ）	ＲＦ	ＣＢＺ	ＡＰＬ	Cl
ＡＬＴ（ＧＰＴ）	ASO	CSA	ＰＬＧ	K
ＡＬＰ	TPLA	DIG	ＰＣ
γ-ＧＴＰ	ＲＰＲ	ＤＩＧＴ	ＦＤＰ
ＣＫ（ＣＰＫ）	β2-m	HAL	Ｄｄｉｍｅｒ
ＬＡＰ	Ｔｆ	PB
ＣｈＥ	Ｃ3	PHT
ＡＭＹ	Ｃ4	THEO
Ｐ－ＡＭＹ	Ｉｇ－Ｇ	VPA
ＢＵＮ	Ｉｇ－A
ＣＲＥ	Ｉｇ－Ｍ
ＵＡ	Ｉｇ－Ｅ
Ｔ－ＣＨＯ
ＴＧ
ＨＤＬ－Ｃ
ＬＤＬ－Ｃ
ＴＰ
ＡＬＢ
Ｃａ
ＩＰ
Ｍｇ
Ｆｅ
ＵＩＢＣ
Ｄ-ＢＩＬ
T-ＢＩＬ
ＧＬＵ
ＮＥＦＡ
ＰＬ
ＡＬＤ
ＳＩＡ
ＴＢＡ
ＧＡ
ＣＫ－ＭＢ
ＡｐｏＡ-Ⅰ
ＡｐｏＡ-Ⅱ
ＡｐｏＢ
ＡｐｏＣⅡ
ＡｐｏＣⅢ
ＡｐｏＥ
Ｌｐ(a）
Ｆｅｒ
μＴＰ
ＮＡＧ
μALB
HbA1c
HBAO
