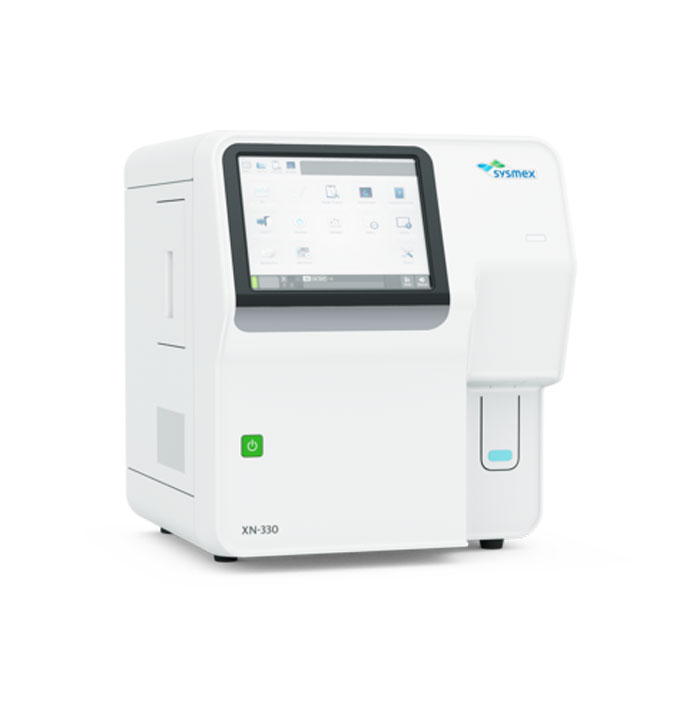

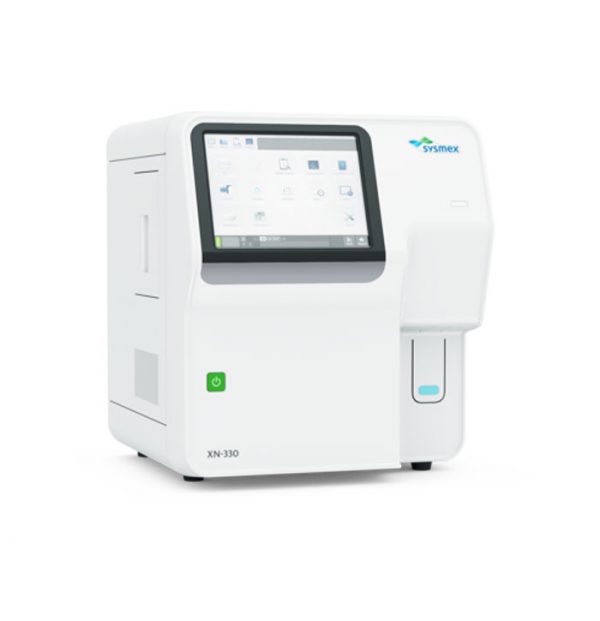

Sysmex XN-330 Hematology Analyzer
Includes:
One Sysmex XN-330 Hematology Analyzer.
XN-330 is a fully automated compact 6-part differential haematology analyser. The XN-330 offers single sample analysis in open mode. It has a fully integrated IPU (information-processing unit) including an LCD colour touchscreen that makes it easy to operate.
Features:
The XN-330 offers single sample analysis in open mode. It has a fully integrated IPU (information-processing unit) including an LCD colour touchscreen – so you do not need a separate computer to operate the analyzer. It incorporates the proven Sysmex technologies of fluorescence flow cytometry, hydrodynamic focussing and our cyanide-free SLS method for determining haemoglobin.
Specifications:
| Dimensions / weights | · W x H x D [mm / kg]
· XN-350: 450 x 510 x 460 / approx. 35 kg |
| Throughput | · CBC + DIFF: up to 70 samples/hour
· CBC + DIFF + RET: up to 35 samples/hour · Body fluide mode: up to 30 samples/hour |
| Aspiration volume | · 25 µL in WB,
· 70 µL in PD |
| Analysis parameters | · Whole Blood WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, PDW, MPV, P-LCR, PCT, NEUT#, LYMPH#, MONO#, EO#, BASO#, NEUT%, LYMPH%, MONO%, EO%, BASO%, IG#, IG% |
| Measurement principles | · WBC DIFF/RET: Fluorescence Flow Cytometry
· WBC: Flow Cytometry · RBC/PLT: DC Impedance method with hydrodynamic focussing · HGB: Cyanide-free SLS method |
| Data storage capacities | · Results: 100,000 samples
· Patient information: 10,000 records · Calibration history: 20 times/ module · QC files: 99 files including XbarM · QC plots: 300 plots / file |
| User maintenance | · Daily shutdown
· Weekly cleaning sequence with Cellclean or Cellclean Auto |
