Standard Microcentrifuge – GCM-24

Category:

Description

Standard Microcentrifuge

The GCM-24 is a powerful, feature-rich microcentrifuge at an affordable cost. It is easily programmable through a combination of LCD display, control buttons and parameter adjustment knob. The GCM-24 is compatible with numerous biological, chemistry, clinical and research applications including molecular biology, blood labs, DNA protocols and many more.

Standard features include a high strength 24 place 1.5 / 2.0mL aluminum alloy rotor with biosafety aerosol containment lid (all of which can be fully autoclaved). Multi-flow air cooling ensures your temperature sensitive samples are safe. The GCM-24 features pulse operation for quick spins, a unique temperature monitor and much more.

Features:

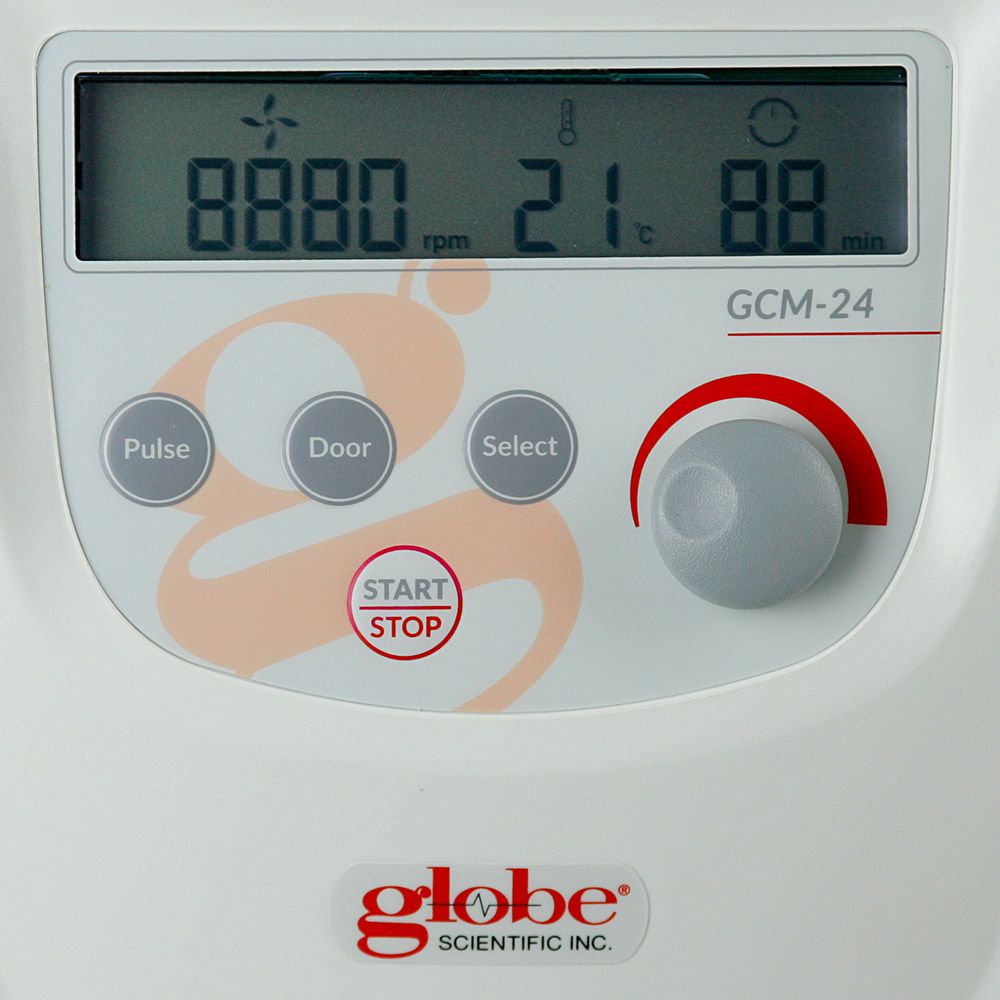

  • Reliable and intuitive LCD display
  • Temperature monitoring for handling of critical samples sensitive to fluctuations
  • Quiet operation
  • Maintenance-free brushless DC motor
  • Fully autoclavable 1.5 / 2.0mL aluminum rotor with aerosol lid included as standard
  • Includes pulse operation (quick spin)
  • Patented multi-flow air cooling design ensures fast, efficient cooling of the rotor and helps lower energy consumption
  • Optional rotors available

Advanced Features:

  • Speed / RCF switch
  • Quick spin function
  • Audible alert function

Safety Features:

  • Dual door safety interlock
  • Excessive speed detection
  • Automatic internal diagnostics



Specifications

Specifications GCM-24
Maximum Speed 15,000 rpm (200-15,000 rpm), 10rpm increment
Maximum RCF 21,380 x G, (10 x G Increment)
Speed Accuracy +/- 20 rpm
Rotor Capacity Twenty-Four (24) 1.5 / 2.0mL tubes
Run Time 30 sec – 99 min or continuous
Power 5A, 500W
Acceleration Time 25 Seconds
Braking Time 25 Seconds
Dimension (W x D x H) 280 x 364 x 266mm (11.0 x 14.3 x 10.5″)
Weight 12 Kg (26.5 lbs)
Certifications CE, cTÜVus, FCC, MCA
Warranty 2 Years
