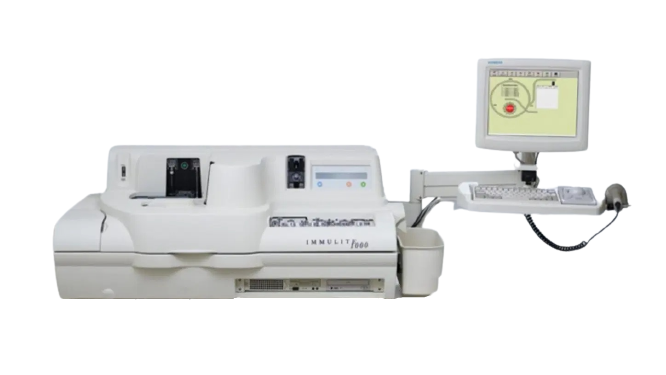

Siemens Immulite 1000 Immunoassay System

Contact us with any questions.

Thank you!

Request Quote

IDE-difference

Description

The IMMULITE 1000 system is a small bench top immunoassay analyzer. The extensive menu, low cost of operation, reliability, and ease of use makes this system a great choice for laboratories with low-volume immunoassay tests. Over 100 Outside the U.S. (90 U.S.) assays for routine and esoteric testing, increases the lab’s in-house testing capabilities
The reliability and ease-of-use makes the IMMULITE 1000 system particularly well suited for use in remote laboratories throughout the world.

Additional information

Manufacturer

Specifications

Overview



System Description

Random access immunoassay system

Throughput

Up to 120 test per hour in random or batch access mode

Time To First Result

42 minutes standard mode, 15 minutes turbo mode

Assays On Board

Up to 12

Samples and Sample Handling



Sample Types

Serum, plasma

Sample Tubes

Indirect tube sampling

Sample and Reagent
integrity control

Liquid level sensors

Reagents and Reagent Handling



Reagent Positions

12

Reagent Barcodes

Allows operator to auto load calibration information and test parameters.

User Interface



Operating System

Microsoft® Windows® 7

Monitor

15 inch touch sensitive screen

Maintenance



Daily

5-10 minutes

Weekly

15 minutes

Monthly

30 minutes

Environmental



Operating Temperature

18 – 32° C

Electrical





110 – 120 v 6 AMP
200 – 240 v 4 AMP
50/60 Hz

Dimensions



Height

19 in / 48 cm

Width

46 in / 117cm

Depth

26 in / 66 cm

Weight

240 lbs / 109 kg

Test Menu

Reproductive Endocrinology Therapeutic Drug Monitoring Thyroid
Androstenedione Carbamazepine Anti-TG
DHEAS Digoxin Anti-TPO
Estradiol Phenobarbital Free T3
FSH Phenytoin Free T4
hCG Theophylline Intact PTH
LH Valproic Acid TSH
Progesterone 3rd Generation TSH
Prolactin Veterinary* Thyroid Binding Globulin (TBG)
SHBG Canine FT4 Thyroglobulin
Testosterone Canine TLI T Uptake
Unconjugated Estriol Canine Total T4 Total T3
Canine TSH Total T4
ToRCH Oncology Metabolic
CMV IgG AFP ACTH
CMV IgM CA 15-3 (BR-MA) Cortisol
Herpes I & II IgG CA 125 (OM-MA) Homocysteine
Rubella IgG Calcitonin
Rubella IgM CEA Cardiac
Toxoplasma IgG PAP High-sensitivity CRP
Toxoplasma IgM PSA Myoglobin
Free PSA Troponin I
3rd Generation PSA
Diabetes Growth Anemia
C-Peptide Growth Hormone (hGH) Ferritin
Insulin IGF-I Vitamin B12
Microalbumin
Allergy Other
IgE, Total Gastrin
ß-2 Microglobulin
