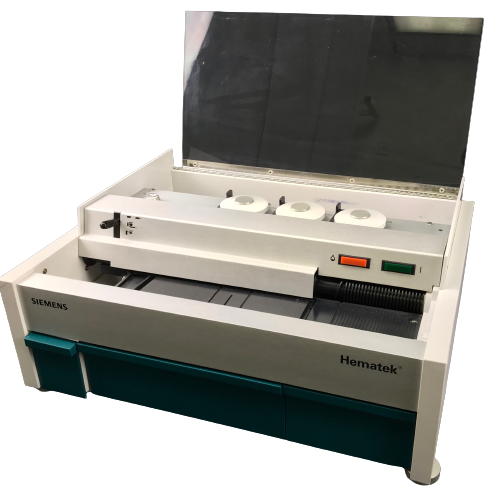

Siemens Hematek 2000 Slide Stainer

Contact us with any questions.

Thank you!

Request Quote

IDE-difference

Description

Siemens Hematek 2000 Slide Stainer

Includes:

 Hematek 2000 re-certified with 30-day parts warranty and operators manual.

Features:

The Hematek Slide Stainer is a fully automated, bench-top instrument designed specifically for use in hematology. It is a self-contained system that conveys, fixes and stains dry blood smears prepared on standard glass slides. As a part of a CBC, whole blood spread on a slide is stained for microscopic identification of the white blood cells, study of red blood cell morphology and estimation of number of platelets. The instrument requires a carefully prepared blood smear. Smears prepared from nasal, sputum, sinus, bronchial secretions, feces and urine can also be stained with this method.

The HEMA-TEK 2000 Slide Stainer provides a continuous-feed loading platform that eliminates wasted time associated with batch staining methods. Correct first-time staining means less duplicated work.



Additional information

Manufacturer

Features/Benefits

-Pumps deliver fresh reagents in precise volume for every stain while the platen provides uniform -stain from field-to-field and slide-to-slide with stain and buffer mixing accurately and uniformly



-Slides are immediately available for viewing upon completion of staining, and the rinse reagent -contains the optimal alcohol concentration for proper slide drying



-Dials, located on front panel, allow for wide variation in stain intensities to suit individual needs



-Simple to maintain



-Stains 60 slides per hour



Specifications

Power Requirements 100 – 230 VAC + 10%, 50/60 Hz, 0.75 Amps
Fuse Rating  250 Volt, 1.0 Amps, 5mm x 20mm, Type T



Line Leakage Current <5 milliamperes



Testing protocol and allowable limits as specified by the safety standards for laboratory equipment outlined in



UL 1262 and CSA 22.2 No. 151.



Dimensions: Depth – 43.4 cm (17.1 in)

Width – 47.0 cm (18.5 in)

Height – 19.0 cm (7.5 in)



Weight 17.7 kg (39 lbs)



Throughput Stains 1 slide per minute



REF Number: 4488C
