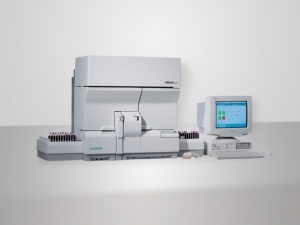

Siemens Advia 120 Hemotology System

Description

Siemens Advia 120 is a Hemotology Analyzer system that satisfies the demands of laboratories through comprehensive testing parameters, flexible sample handling, a user-defined interface, and a compact bench-top design. Advia 120 system automates hematology workflow without the need for large track-based systems or reflexive testing, maximizes efficiency through user-defined screen configurations and reports, simplifies maintenance with Unifluidics, technology through reduced fluidics, elimination of pinch valves, and automated daily cleaning. It has streamlines productivity with a 150 capacity rack-based autosampler, allowing 75 minutes of true walk-away time, reduces the need for manual slide production and review by utilizing WBC and RBC/PLT technology and high specificity. It also maximizes the effectiveness of costly platelet transfusions with accurate results the first time—even at very low platelet levels. At International Diagnostic we re- certify and refurbish and have international shipping available.

Additional information

Manufacturer

Specifications

  • Test Selectivity / Throughput
    CBC- 120 samples/hour
    CBC/DIFF- 120 samples/hour
    CBC/DIFF/Retic -74 samples/hour
    CBC/Retic- 74 samples/hour
    Retic- 74 samples/hour
  • Weight and Dimensions
    Analytical Module with Autosampler:
    Weight 193 kg / 425 lbs
    Height 86 cm / 33.8 in
    Width 141 cm / 55.5 in
    Depth 68 cm / 26.8 in
  • Analytical Module without Autosampler:
    Weight 163 kg / 360 lbs
    Height 86 cm / 33.8 in
    Width 81 cm / 31.9 in
    Depth 68 cm / 26.8 in



Test (Assay) Menu:

Parameters

  • CBC Results- WBC, RBC, HGB†, HCT, MCV, MCH, MCHC, CHCM, RDW, HDW, CH, CHDW, PLT
  • Differential Results-
    (absolute and %) NEUT, LYMPH, MONO, EOS, BASO, LUC (Large Unstained Cells)
  • Platelet Results PLT, MPV, PDW, PCT
  • Reticulocyte Results
    (absolute and %) RETIC, MCVr, CHCMr, RDWr**, HDWr**, CHr, CHDWr**
