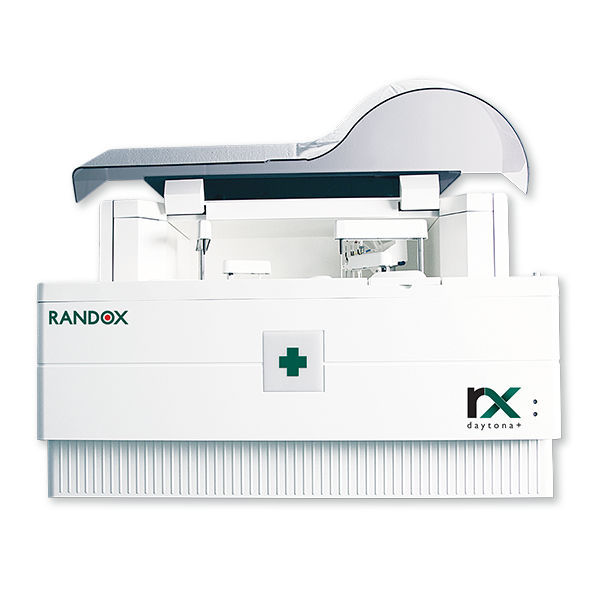

Randox RX Daytona +
Includes:
One Randox RX Daytona.
The RX daytona+ is a fully automated, random access platform delivering a high level of precision, accuracy and reliability with the ability to perform emergency STAT sampling. The most versatile analyzer in its class, the RX daytona+ is capable of performing 270 photometric tests per hour and up to 450 with ISE testing.
Features:
The RX daytona+ is a fully automated, random access platform delivering a high level of precision, accuracy and reliability with the ability to perform emergency STAT sampling. The most versatile analyzer in its class, the RX daytona+ is capable of performing 270 photometric tests per hour and up to 450 with ISE testing.
– World leading extensive test menu covering routine chemistries, specific proteins, lipids, antioxidants, cardiac and diabetes testing, offering cost savings through consolidation of routine and novel tests on a single platform
– Integrated barcode readers for reagent and sample identification. Increased functionality with 12 wavelengths generated via diffraction grating (340-800nm) ensuring a multitude of chemistries are possible on one system
– Separate sample and reagent pipettes minimize carryover. Dedicated micropipettes are equipped with liquid level sensors and crash detection. Dual five speed stirrers provide optimised mixing for each assay
– Economic platform with low water consumption of only 5 liters per hour saving on consumable costs. The RX daytona+ also requires minimal maintenance
– Easy to use icon based and advanced software with an on-board inventory management system providing unrivalled up-time and performance with sensitive clot detection sensors and on-board cuvette checking function
– Advanced software with unrivalled QC capabilities developed to improve laboratory efficiencies with the ability to generate Levey-Jennings charts, calibration curves and the ability to provide QC statistics and results. There are also 7 different calibration options available
Specifications:
PHYSICAL DIMENSIONS
| Height | 625mm |
| Depth | 670mm |
| Width | 870mm |
| Weight | 120kg |
PERFORMANCE CHARACTERISTICS
| Throughput | 270 tests per hour, 450 tests per hour with ISE |
| Analyzer type | Compact fully automated random access bench top clinical analyzer |
| Assay type | Endpoint, kinetic and ISE |
| Maintenance | Daily maintenance – less than 5 minutes. Simple twice yearly preventative maintenance service |
REAGENT & SAMPLE SYSTEM
| Data management | Storage of up to 30,000 patient reports, search facility |
| Test channels | 50 photometric channels, 3 direct ISE |
| Sleep mode | User defined sleep mode capabilities with automatic wash and instrument prep |
| Reagent pipette | Dedicated reagent micropipette with liquid level sensor and crash detection |
| Reagent capacity | Removable turntable with 50 cooled positions for 20ml and 70ml bottles |
| Reagent cooling | 8 to 15°C |
| Reagent identification | Barcode reagent identification |
| Reagent inventory | Calculation of remaining reagent volume and tests available Alert for shortage or expired reagents |
| Sample addition | Sampling interruption for addition of samples |
| Sample capacity | 50 positions are contained within the universal carousel, including 10 bespoke positions for calibrators and controls |
| Sample dead volume | 150µl in standard or primary tubes, 100µl in paediatric cups |
| Sample dilution | Pre-dilution and automatic re-assay with diluted, reduced or increased sample volume |
| Sample identification | Barcode sample identification |
| Sample pipette | Dedicated sample micropipette with liquid level sensor, crash protection and clot detection |
| Sample tube size | Multiple primary tube sizes (diameter 12 to 16mm, height 55 to 100mm), Paediatric cups |
| Sample type | Serum, Plasma, Urine, CSF & Whole Blood Sample volume 1.5 to 35µl (0.1µl increments) |
| STAT sampling | STAT samples can be added immediately via emergency loading port 11 |
REACTION SYSTEM
| Reaction time | 10 minutes (R1: 5 min. + R2: 5 min.) |
| Reaction volume | 100 to 350µl |
| Stirring speed | 5 speed levels available |
| Stirring system | Dual 5 speed stick type rotating stirrers |
| Temperature control | Dry bath |
| Water consumption | Maximum 5L per hour |
| Water requirements | NCCLS type 1 or 2 purified water supply |
| Wash unit | 12 stage washing process |
| Cuvettes | 72 semi-permanent cuvettes |
| Incubator temperature | 37°C ± 0.1°C |
| Cycle time | 13 seconds |
OPTICAL SYSTEM
| Detector method | Direct absorbance in cuvette (bi-chromatic and monochromatic) |
| Detection principal | 12 wavelengths generated via diffraction grating: 340, 380, 415, 450, 510, 546, 570, 600, 660, 700, 750 and 800nm |
| ISE unit | Optional ISE unit available |
| Light source | Halogen tungsten lamp air cooled by fan |
CALIBRATION & QC
| Quality control | Interactive Levey-Jennings charts, daily, monthly and batch QC with data archiving |
| Calibration principal | Factor, Linear, Point to point, Log-logit, Exponential, Spline and Spline 2 |
POWER & CONNECTIVITY
| Power requirement | AC100V to 120V, 6.5A (Max.) AC200 to 230V, 3.3A (Max.) 50/60Hz |
| Power consumption | 650VA |
| Permissible voltage variation | ± 10% (Max.) |
| LIMS connectivity | Bi-directional ASTM Standard (RS232 connection) |
OPERATING SYSTEM
| Operator interface | Windows10® based software |
