Ohaus Pioneer PX163/E PX Precision Balance Scale

$897.79

Please contact us with any questions.

Thank you!

Description

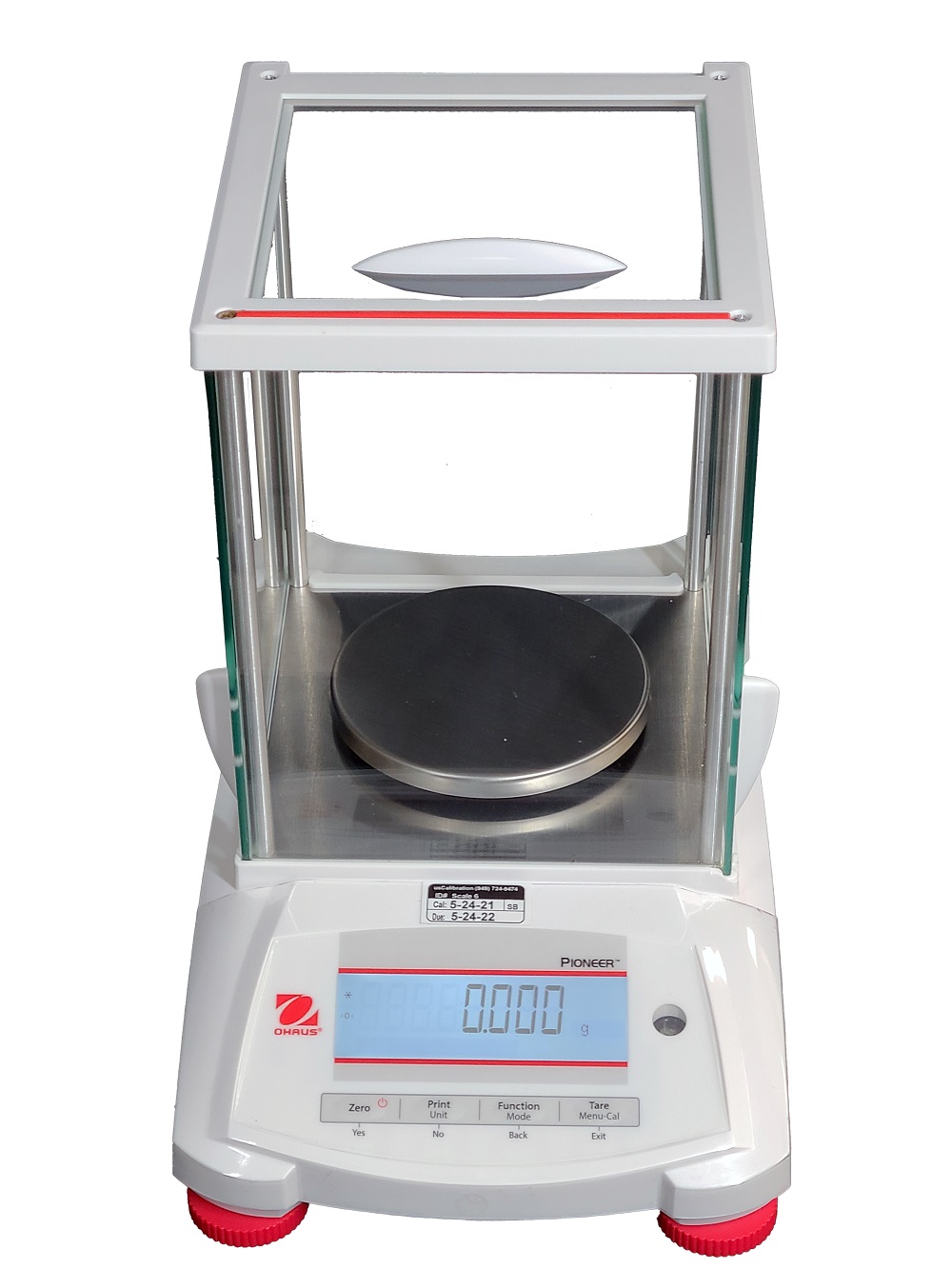

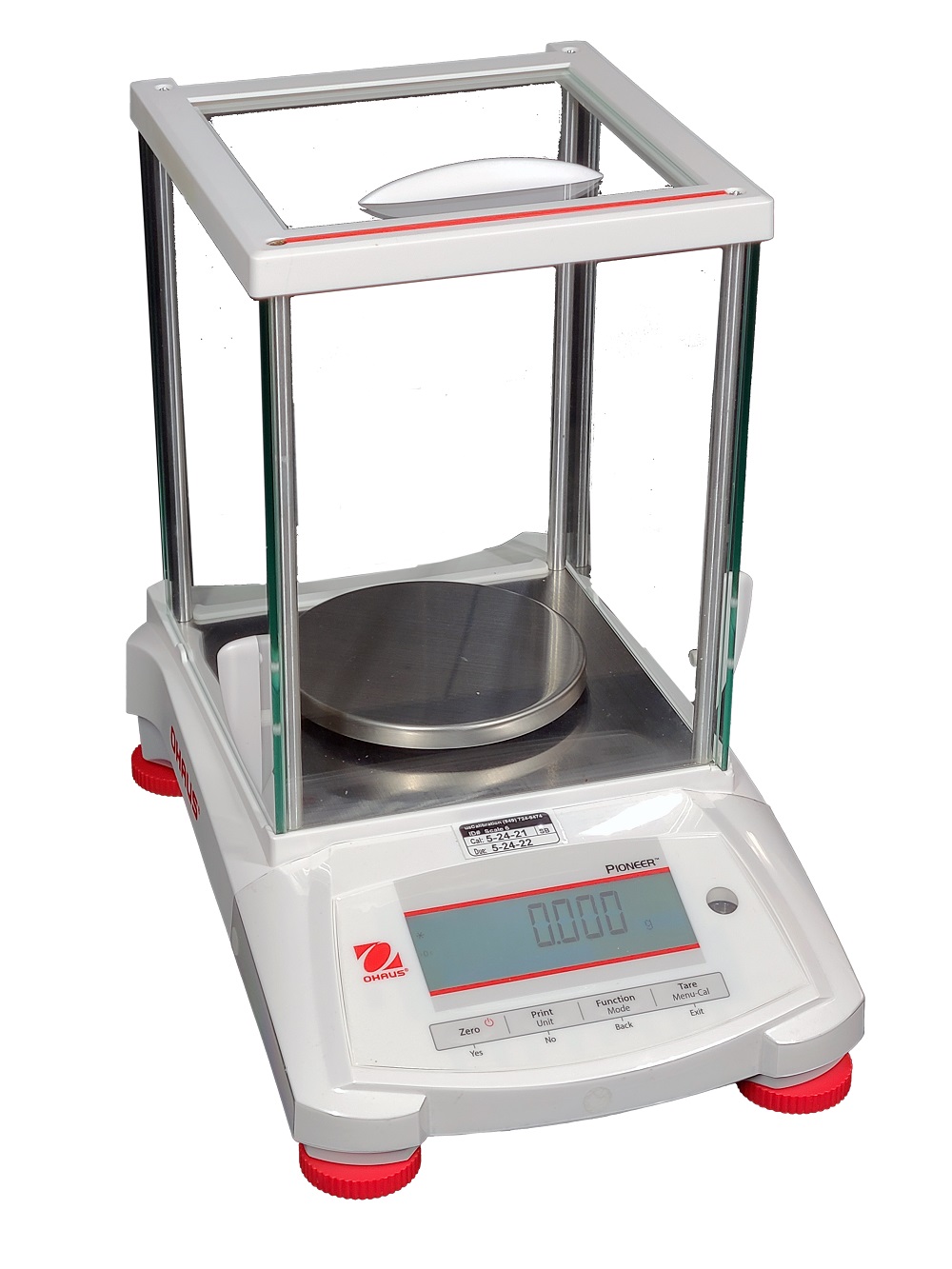

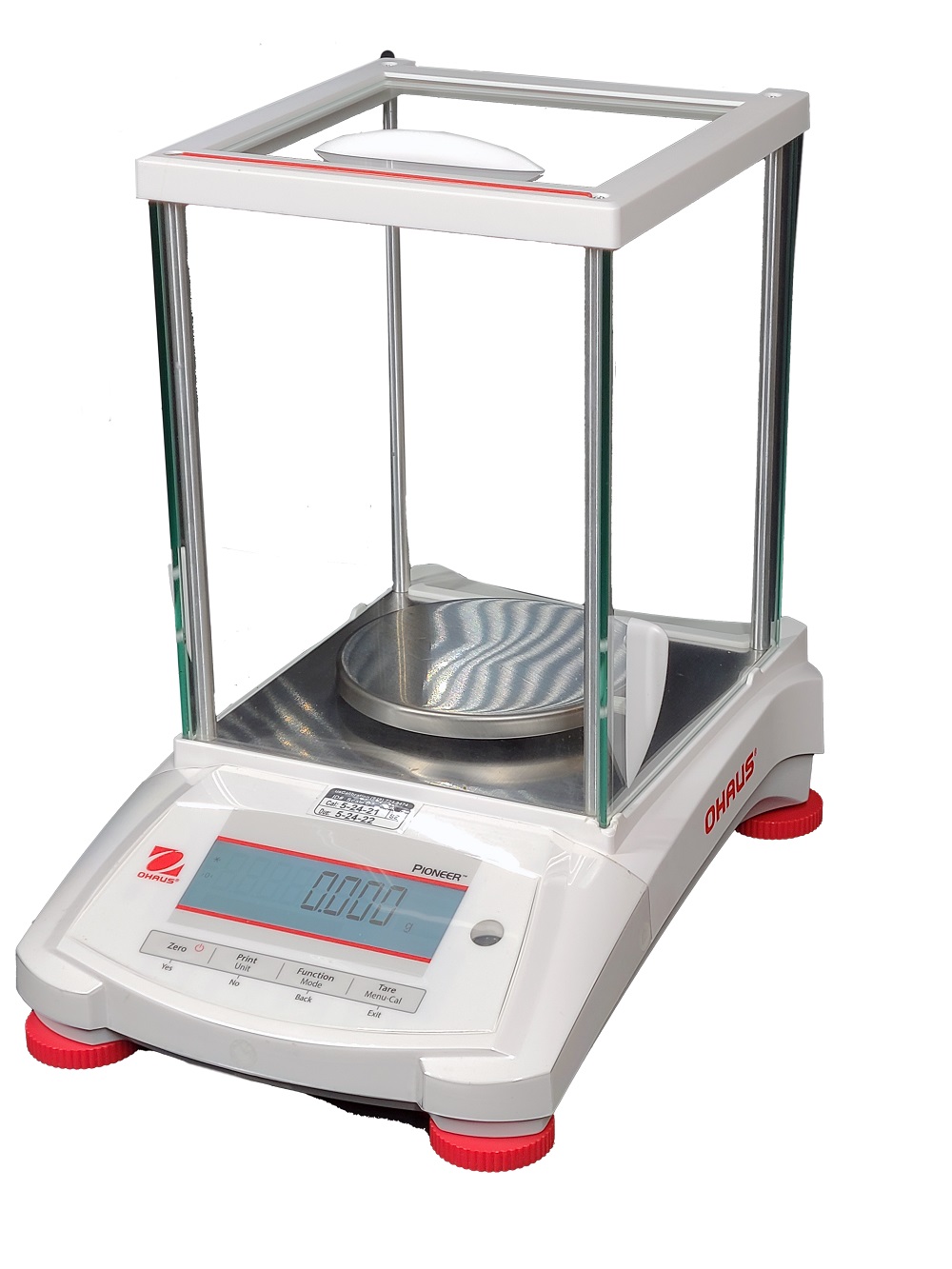

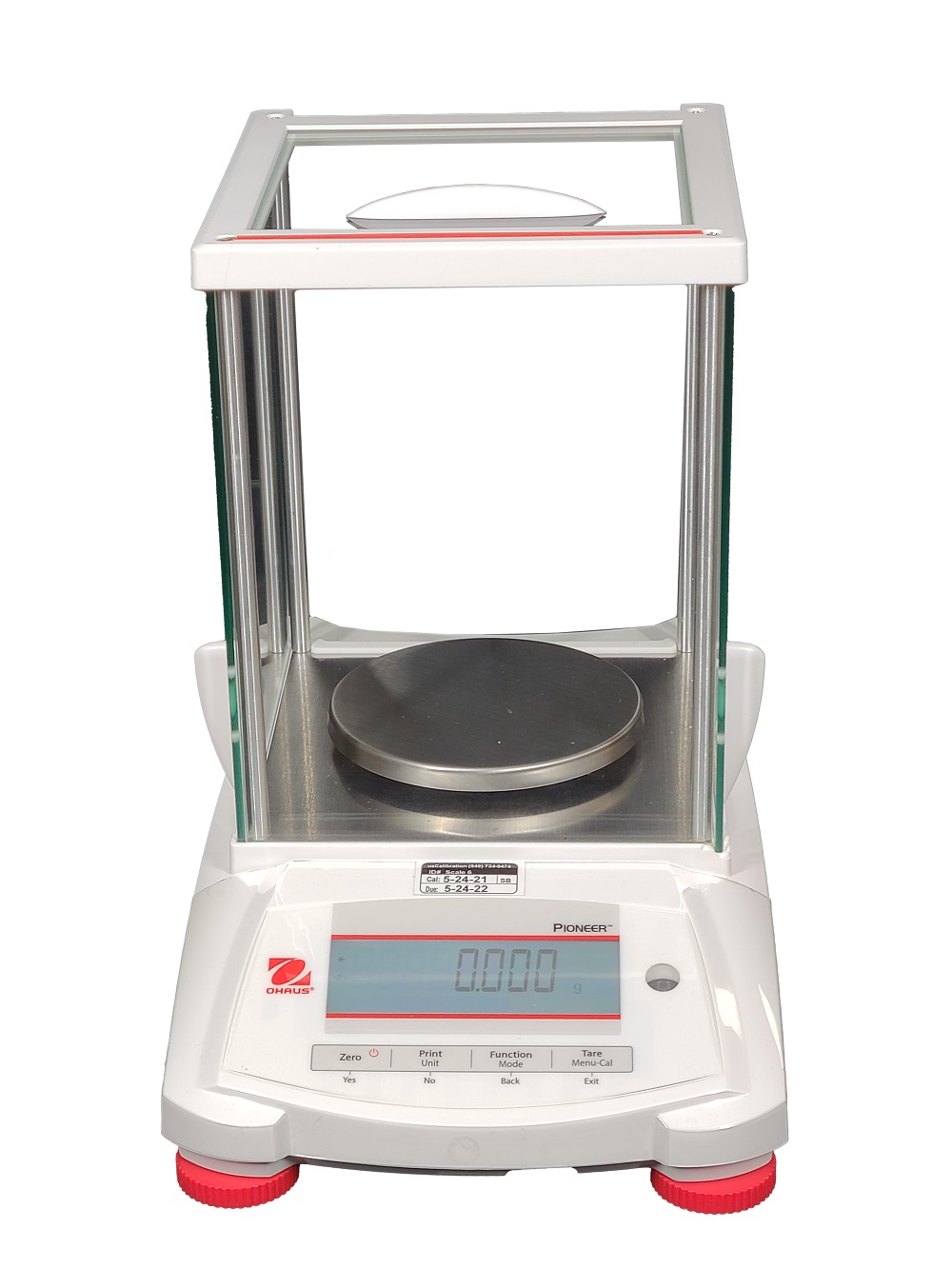

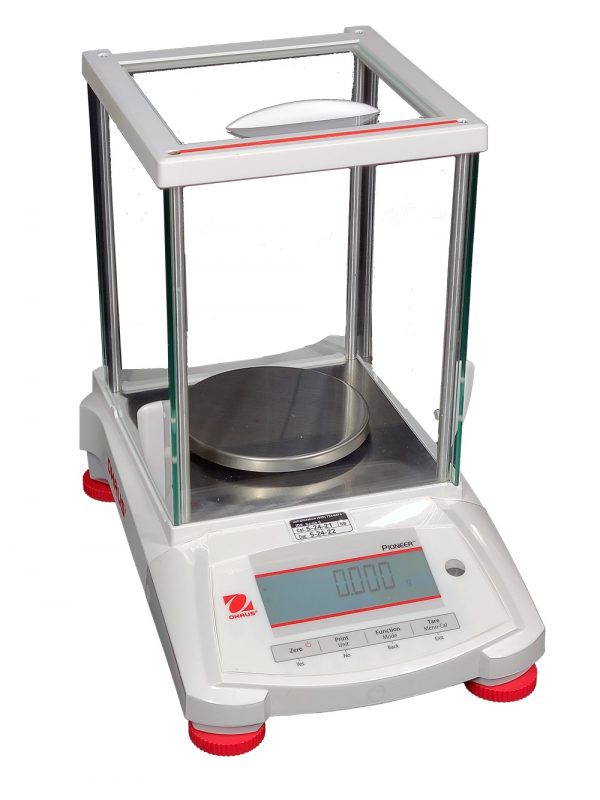

Ohaus Pioneer PX163/E PX Precision Balance Scale, 160 g x 1 mg, #PX163/E

Includes:

– One fully functional Ohaus Pioneer precision balance scale

The Ohaus PX163/E precision balance, which has a capacity of 160 grams with a readability of 1 milligram and comes with a 4.72″ (120mm) diameter weighing pan. The Ohaus Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings.

Features/Benefits

Features:

The Ohaus PX163/E precision balance, which has a capacity of 160 grams with a readability of 1 milligram and comes with a 4.72″ (120mm) diameter weighing pan. The Ohaus Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The Pioneer PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS-232 connectivity for easy communication.

2 Line Display A brightly lit dual line display shows the weight in an easy-to-read manner, while a ot-matrix second line provides additional information or guidance prompts to the user.

Durable Construction Featuring a cast metal lower housing, metal sub-pan, stainless steel weighing pan and removable draft shield or side doors, the Pioneer is durably constructed for long-term use, and suitable for a variety of applications.

Communication Ports Standard RS-232 and USB device ports allow for easy connectivity to printers and other peripherals, allowing convenient capture of results. OHAUS’ free data collection tool (SPDC) provides a simple solution to import this data directly in formats such as Excel, Access, .txt, .csv etc.

Static Removal Bar A static removal bar along the top of the draft shield provides a convenient grounding location, allowing the user to discharge any static charge that may have accumulated prior to handling samples and weighing. This helps compliance with good weighing practices, while improving the stability and accuracy of results.

Applications

Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation

Display

Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)

Operation

AC adapter (included)

Communication

RS232 and USB device (included); GLP/GMP data output with real-time clock



Construction

Metal base, plastic top housing, removable stainless-steel pan, glass draft shield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover

Design Features

User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, users electable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

Specifications

Specifications:

Maximum Capacity 160 g
Readability 0.001 g
Pan Size 120 mm
Internal Calibration Not applicable
Draftshield Included
Auto Door Not applicable
Auxiliary Display Model Available as an Accessory
Battery Life Not applicable
Communication USB;  RS232
Dimensions 321 mm x 309 mm x 209 mm (LxHxW)
Display 2-Line LCD with Backlight
In-Use Cover Included
Legal for Trade No
Linearity ± 0.002 g
Minimum Weight (USP, 0.1%, typical) 2 g
Net Weight 10 lb (4.5 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.001 g
Stabilization Time 2 s
Tare Range To capacity by subtraction
Units of Measurement Singapore Tael;  Pennyweight;  Ounce Troy;  Kilogram;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Ounce;  Carat
Working Environment Operation guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing)
