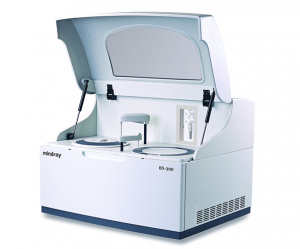

Mindray BS 200 Chemistry Analyzer

Mindray BS 200 Chemistry Analyzer

Contact us with any questions.

Thank you!

Request Quote

IDE-difference

Category: Tags: ,

Description

The BS-200 Automated Analyzer from HORIBA Medical is a fully automated, benchtop analyzer that is capable of performing up to by 330 tests/ hr. with ISE and 200 tests/ hr. without ISE. It includes features such as independent mixing for optimal homogenization along with liquid detection, collision protection and probe cleaning to ensure the samples are kept safe. This innovative analyzer can hold up to 40 sample positions and is equipped with intuitive software, making it the ideal solution for Physician Owned Laboratories (POL), small decentralized laboratories, toxicology laboratories and drug courts.

The Mindray BS 200 is Typically used in small laboratories (used as a main instrument); medium-sized and large laboratories (used as a back-up)

  • 200 tests per hour, up to 330 tests per hour with ISE (K, Na, Cl)
  • 24-hour refrigeration for reagent tray
  • Built-in bar code scanner
  • Independent mixing stirrer
  • Robust and user-friendly operation software
  • Multi-language version available

Additional information

Manufacturer

Features/Benefits

Features:

  •  200 tests per hour, up to 330 tests per hour with ISE (K, Na, Cl)
  •  24-hour refrigeration for reagent tray
  •  Built-in bar code scanner
  •  Independent mixing stirrer
  •  Robust and user-friendly operation software
  •  Multi-language version available
  •  Pre-dilution and post-dilution for sample
  •  Bi-directional LIS interfacer
  •  Comes with:
  •  Installation
  •  Operation Training
  •  Validation

Specifications

Light Source:  Halogen-tungsten lamp

Photometer: Reversed optics, static fiber spot photometry

Wavelength: 340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 630nm, 670nm

Absorption range: 0~4.0Abs (10mm conversion)

Resolution: 0.0001 Abs

Reaction rotor:  Rotating tray, containing 80 cuvettes

Cuvette:   Optical length 5mm

Reaction volume: 180-500ul

Reaction temperature: 37° C

Temperature fluctuation:  ±0.1 °C

Throughput: Up to 225 tests per hour

Reagent/Sample tray: 40 positions for reagents and 40 positions for samples in refrigerated compartment (4~15° C)

Reagent volume: R1: 180-450µ1, step by 1 µI R2: 30~450µ1, step by 1 µI Sample volume: 3~45µ1, step by 0.5 µI

Reagent/Sample probe:  Liquid level detection, collision protection and inventory checking

Probe cleaning:  Automatic washing for both interior and exterior Carry-over < 0.1 %

Automatic sample dilution: Pre-dilution and post-dilution

Water consumption:  3.SL/hour

Dimensions: 34x27x46

Weight: 360 lbs

Power: 100-130V, 50/60 Hz, 1000 va

Test Menu

Enzymes Substrates Electrolytes Specific Proteins Others
ALT TG Na ApoA1 HbA1c
AST TC K ApoB HbAo
ALP HDL Cholesterol Cl Lp(a) U-Alb
ACP LDL Cholesterol Ca ASO BTR
a-HBDH Glu Mg C3
LDH Lactate P C4
CK UREA Fe CRP
CK-MB BUN UIBC IgA
a-AMY Cr TF IgM
MSO UA Cu IgG
ChE TP Microalbumin
ADA Alb FR
y-GT TBIL β2-MG
MAO DBIL Myoglobin
LIP TBA FIB
NAG FMN
