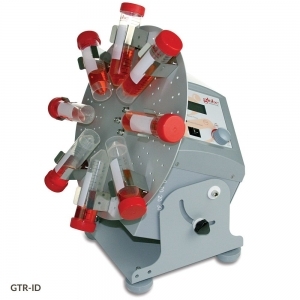

Industrial Tube Rotator GTR-ID

Description

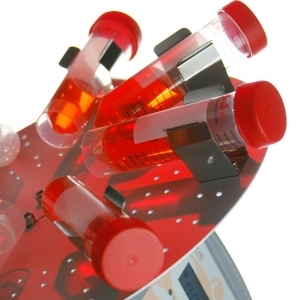

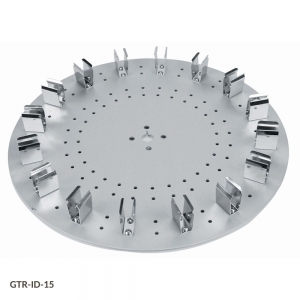

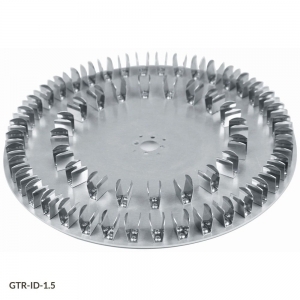

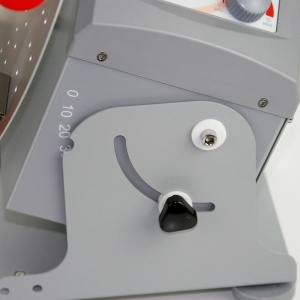

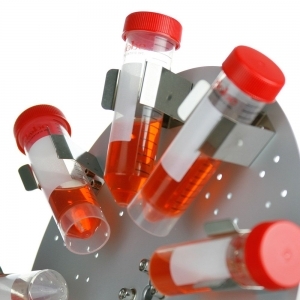

The GTR-ID Tube Rotator efficiently mixes your biological samples and solutions using the included 50mL tube holder disk or the optional 1.5 / 2.0mL and 15mL disks. An industrial style metal housing with tilt adjustment ensures a lifetime of worry-free operation. Consistent tilt adjustment is performed by referring to the graduated angle scale, which is printed directly on the unit housing.

The unit housing, tube holder disks and tube clamps are metal, alleviating the breaking of plastic holders and clamps seen in models from other manufacturers. Optional disk stacking rods allow up to two tube disk holders to be used simultaneously for increased productivity.

Features:

Heavy-duty metal chassis and tube holders/disk accessories
Digital adjustment of speed and time

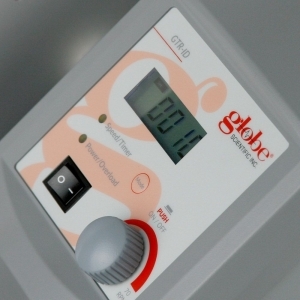

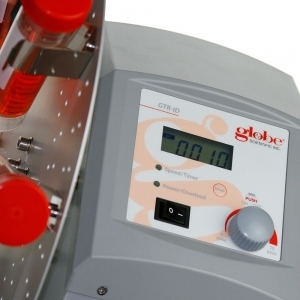

LCD display
Speed range from 10 to 70rpm
Full adjustment of mixing action from end over end or rolling
Adjustment mixing angle from 0° to 90°
Wide variety of accessories are available
Cold room friendly
Can stack up to two tube holders/disks for additional capacity

Specifications

Specifications	GTR-ID
Tilt Angle	0° to 90°
Speed Range	10 to 70rpm
Speed Display	LCD
Timer Display	LCD
Timer	1 – 1199 min
Operation Mode	Continuous or timed
Motor Type	DC Motor
Voltage	100-240V, 50/60Hz
Power	40W
Dimensions (W x D x H)	280 x 210 x 300mm (11.0 x 8.3 x 11.8″)
Weight	4.5 Kg (10 lbs)
Operating Temperature	5 to 40°C
Permissible Relative Humidity	80% RH (non-condensing)
Protection Class	IP21
Warranty	2 Years
