Horiba Yumizen C1200AL Clinical Chemistry Analyzer

Contact us with any questions.

Thank you!

Description

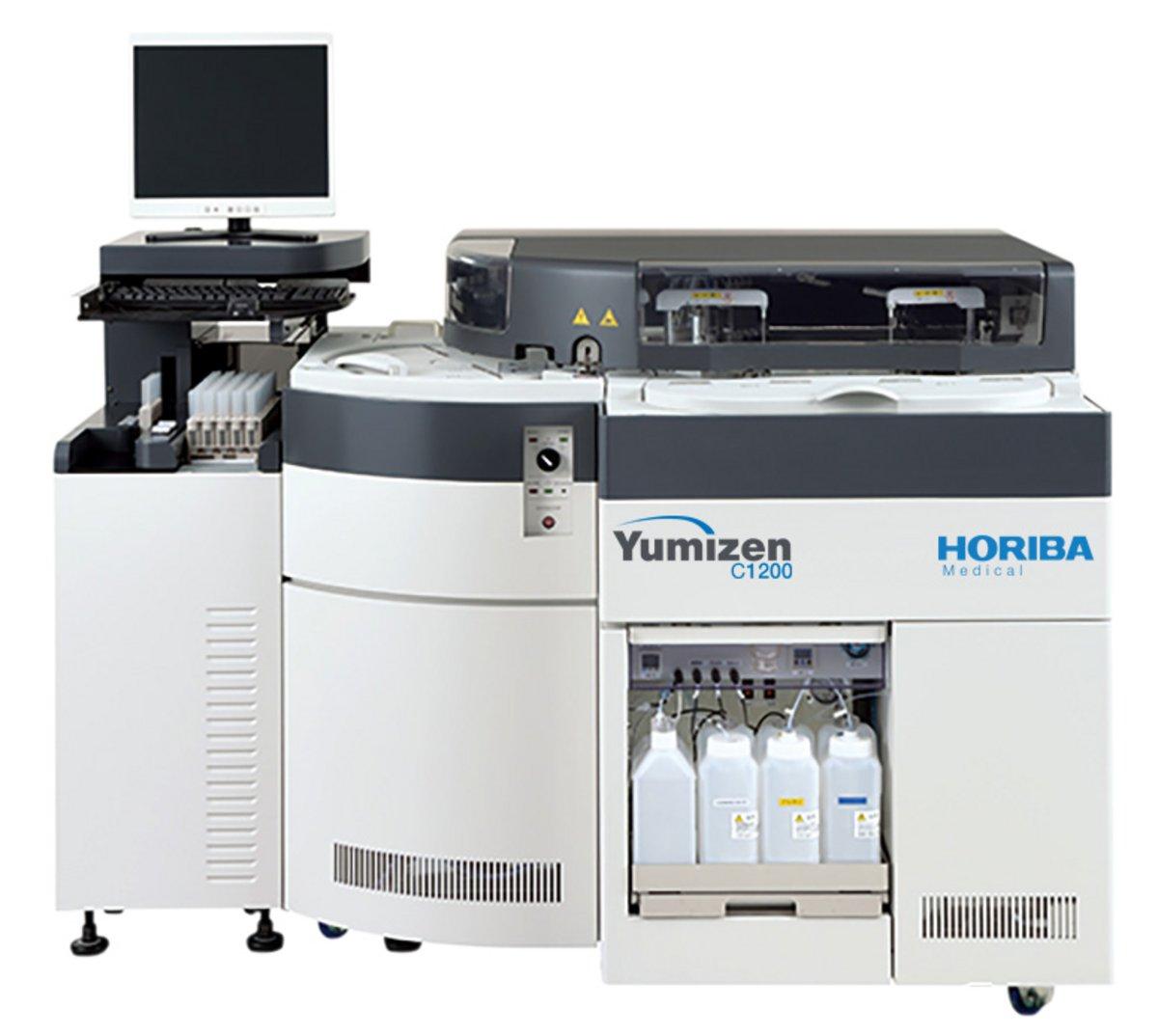

Horiba Yumizen C1200AL Clinical Chemistry Analyzer

Includes:

– One Horiba Yumizen C1200AL complete with accessories.

The Yumizen C1200 AL is the next generation chemistry system designed to provide high efficiency, and accuracy, and optimal workflow capabilities for laboratories processing 2.0M+ tests annually. The Yumizen 1200-AL has a throughput of 1200 tests per hour, includes a dedicated port for STAT patient samples and a large test menu. This system guarantees the heightened flexibility and performance that laboratories require for everyday use.

Additional information

Manufacturer

Features/Benefits

Features:

  • Processes 1200 test/hour with ISEs
  • Dedicated STAT position
  • Random continuous access
  • Serum, Plasma and Urine samples
  • 90 refrigerated reagent positions
  • 61 dedicated refrigerated positions for calibrators and controls
  • Liquid level sensing
  • Clot detection
  • Cap/shock detection
  • Hemolysis, Icterus, Lipemia checks
  • Autoloader (optional accessory)

Specifications

Specifications:

Analysis Method Types Spectrophotometry, colorimetric and Turbidimetric assays
Indirect ISE Na+, K+, Cl-
Throughput 1200 tests/hour
Automatic Maintenance During start-up and shutdown

Sample Handling

Sample Tray 84 samples, continuous loading
Sample Probe Liquid level sensing, cap/shock and clot detections
Sample Identification Integrated barcode reader
Sample Types Serum, plasma and urine
Sample Collection Format 5, 7, 10 mL tubes and sample cups
ISE Sample Volume 22 µL (serum, urine)
Sample Volume 1 – 25 µL (0.1 increment)
Automatic Sample Dilution ½ to 1/300
Calibrator and Control Tray 61 refrigerated positions for calibrators and controls
STAT Sample Handling Dedicated STAT position



Physical Dimensions

Analyzer Size 122 x 85 x 110.8 cm (WxDxH) / 48″ x 33″ x 43″ (WxDxH)
Analyzer Weight 405kg / 992 lbs
Analyzer w AL Size 158 x 109 x 111 (WxDxH) cm / 62.2″ x 42.9″ x 43.7″  (WxDxH)
Analyzer w AL Weight 548kg / 1208 lbs



Test Menu

  • Comprehensive Metabolic
  • Hepatic
  • Lipid
  • Renal
  • Anemia
  • Diabetes/ Stroke
  • Therapeutic Drugs (TDM)
  • Drugs of Abuse (DAU) and Adulterants
  • Specialty Assays
  • Inflammation/Allergy
