Description

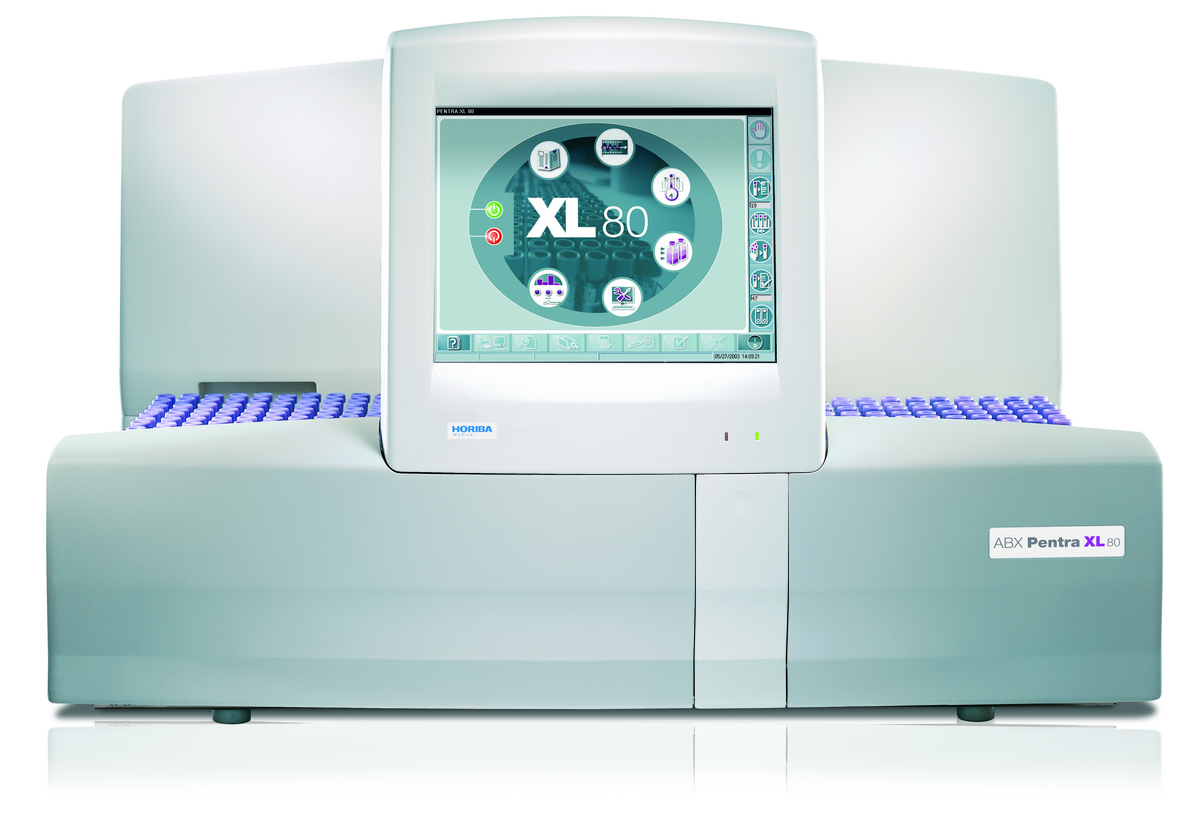

Horiba ABX Pentra XL 80 Hematology Analyzer

Includes:

One Horiba Pentra XL 80 complete with accessories.

Features/Benefits

High performance haematology analysis with integrated validation

  • CBC with 5-part Diff including flagging for immature cells
  • Advanced technologies for mixing and sample analysis ensuring accurate results
  • Processes 80 samples/hr and provides results in 60 seconds
  • Autoloader holds up to 100 samples with random continuous access
  • STAT mode for critical samples

Specifications

Technical

Weight 122 lb / 55 kg
Power supply 100 V to 240 V (± 10%) – 50 Hz to 60 Hz
Dimensions 32.3 x 22.4 x 21.5 in / 82 cm x 57 cm x 54 cm
Printer Laser
Throughput Up to 80 samples/hour
Data Processing Colour LCD touch screen: 12 in

PC onboard: Celeron 566 MHz

Windows XP Prof.TM

RAM (256 Mo), Hard disk (10 Go mini)

Floppy disk & CD ROM reader

RS 232C, 2 X USB1

User defined flagging limits

Transmit patient files & QC to LIS

Uni-directional & bi-directional connections

ASTM protocol inside

Memory capacity 10 000 results + Graphics
Quality Control Management 24 selectable QC files

XB: 60 operator selectable files with statistics (20 results per file)

With-in run

Levey-Jennings graphs

Logs Reagents, Quality Control, Calibration, Maintenance, Blank Cycle, Patients Data, Settings, Information, Technology Communication, Errors, by date.
Patient reports Management Delta check

Anteriority (Matrix, curves, data)

Manual input

Samples

80 samples/hour (open or closed tube)
Parameters (27) WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS%, ALY# & ALY%*, LIC# & LIC%*, RBC, HGB, HCT, MCV, MCH, MCHC, RDW CV, RDW SD, PLT, MPV, PCT*, PDW*.
Graphs High-definition LMNE matrix
PLT, RBC, WBC/BAS curves
Blood Volume CBC mode: 35 µL
CBC + DIFF mode: 53 µL
Stability 48 hours post-draw stability
Operating sample mode Autoloader 10 racks (100 tubes) capacity
Sample mixing with end-over-end tube rotation
Closed or open STAT tube
Identification Alphanumeric. Bar-code reader (optional) and internal bar-code scanner



Test Menu

WBC RBC PLT
NE# & NE% HGB MPV
LY# & LY% HCT PCT*
EOS# & EOS% MCH
BAS# & BAS% MCHC
ALY* # & %
LIC* # & %
