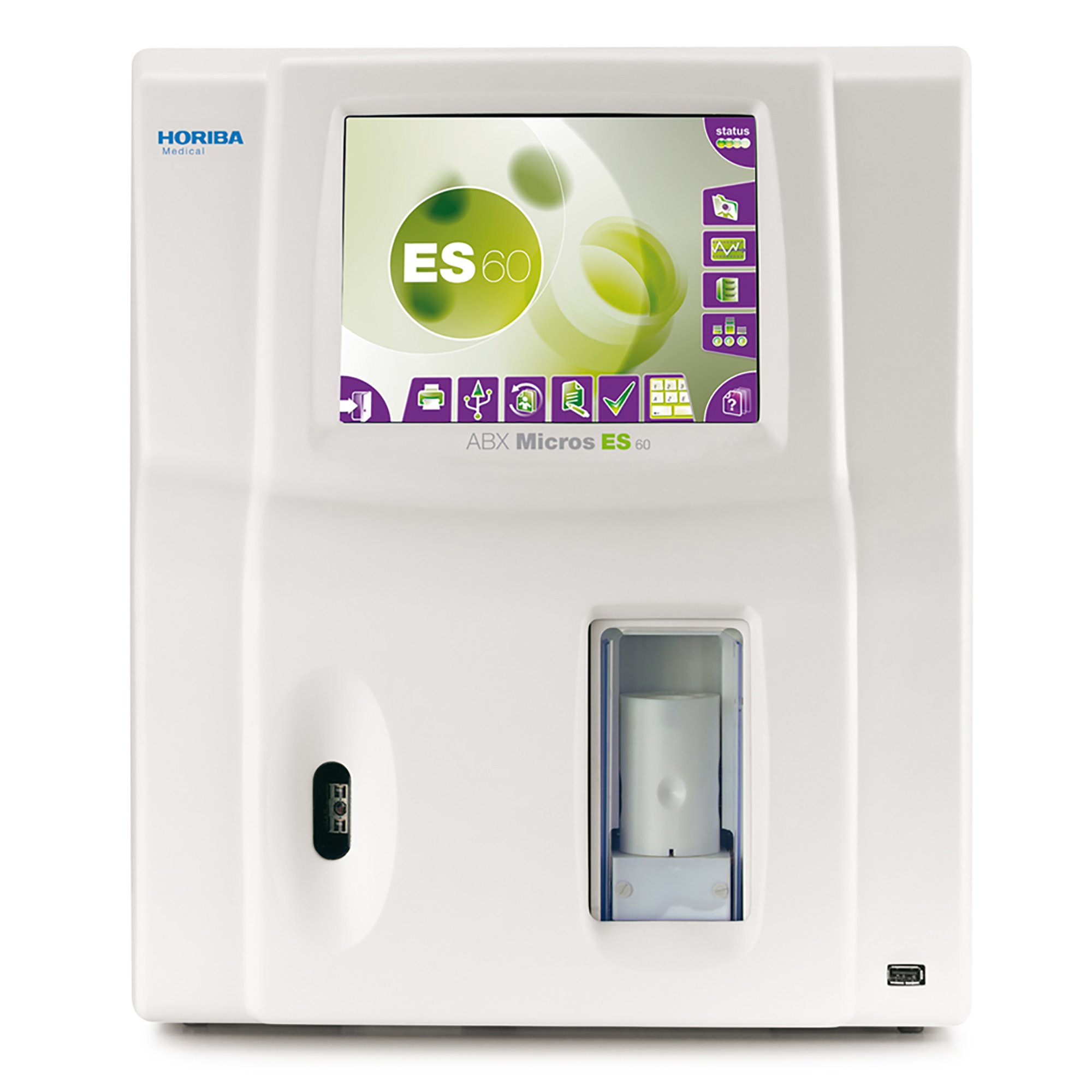

Horiba ABX Micros ES 60 Hematology Analyzer

Contact us with any questions.

Thank you!

Description

Horiba ABX Micros ES 60 Hematology Analyzer

Includes:

– One Horiba Micros ES 60 complete with all accessories.

*The Gold Standard : Perfect combination of intuitive use and innovative technologies

Additional information

Manufacturer

Features/Benefits

Features:

  • Integrated barcode reader (samples, QC and reagents) and thermal printer (full data printout and graphs)
  • User-friendly interface (color touch screen, virtual keyboard)
  • Complete Quality Control Program (3 QC levels import in one time, Levey-Jennings, XB, overlapping)
  • Embedded Data Management: Data transfer with USB key to archive or download data, high results capacity, customized
  • Compatible with innovative reagent pack or bottle systems



Specifications

Specifications:

Technical

Weight: (OT) 30.9 lbs / 16 k, (CT) 35.7 lbs / 17 kg
Power supply: 100 V to 240 V – 50 Hz to 60 Hz
Dimensions (HWD): (in) 16.9 x 14.2 x 14.2 / (cm) 43 x 36 x 36
Printer: Built-in thermal printer



Throughput 50 tests/hour (CT) – 60 tests/hour (OT)
Data Management:



Complete QC menu, logs (reagents, calibration, maintenance, errors, blank cycle), easy data transfer (USB), Transmission of patient & QC results to LAN (local area network), Mono-directional connection, All-in-one QC import, overlapping



Memory: 1000 patients results with histograms
Screen: LCD colour touch screen (8.4”)



Samples

Graphics: PLT, RBC, WBC curves
Blood volume: CBC + 3DIFF mode: 10 μL
Stability: 48 hours post-draw stability(at refrigerated temperature)
Operating sample mode: Open tube or Closed Tube
Identification: Alphanumeric, Integrated barcode reader



Test Menu

WBC, RBC, RDW CV, HGB,

MPV, HCT, MCV, PLT, MCH,

MCHC, LYM# & LYM%,

MON# & MON%,

GRA# & GRA%,

PDW*, PCT*,

RDW SD*.
