Description

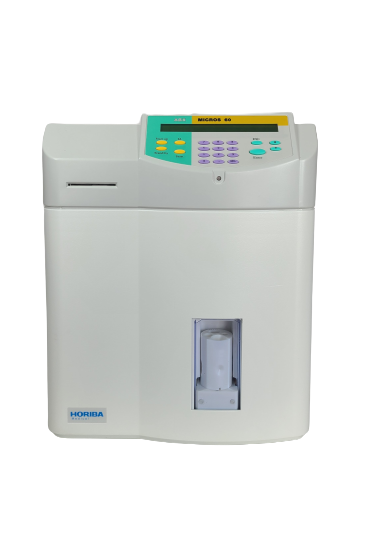

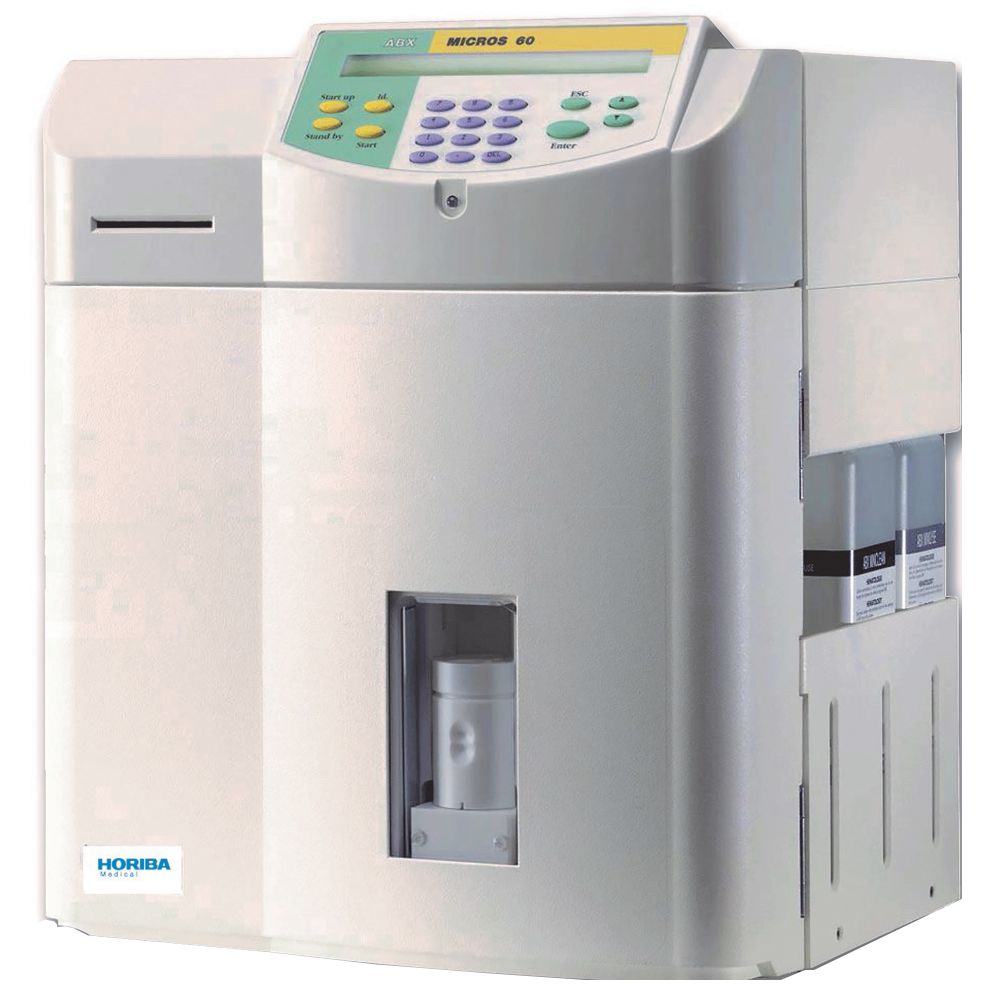

Horiba ABX Micros 60 Hematology Analyzer
Includes:
– Pick Up Tubes
– Tube Holder Block
– Barcode Reader
– Operators Manual
– Power Adapter
Horiba ABX Micros 60 Hematology Analyzer
Features/Benefits
The Horiba ABX Micros 60 +lite Database Manager has a simple and efficient design that is easy-to-use. Its intuitive software navigation with window icons require minimal training. It has a small foot print with uses a minimal amount of counter space. Open and closed tube sampling is available to fit your current laboratory protocol.
Features
- Impedance technology, photometry
- Micro-sampling: Only 10 µL
- Smart card based memory storage (optional)
- ABX Micros 60 Concept And Technology
- Measurement methods: Impedance technology, photometry.
- Liquid valves (without pinching): Reliability and increased precision
- No compressor (stepper motor): less maintenance and noise
Specifications
Specifications
| Weight | 31 lbs |
| Power supply | 90/240 V – 50/60 Hz – 230 VA. |
| Dimensions | 16.5 in x 14 x 12.5 in (HxWxD). |
| Throughout | 60 samples/hour (on open tube) 55 samples/hour (closed tube) |
| Data management | Automated smart cards used for QC and patient data storage. RS 232 output. Uni-directional connection. |
| Memory | Last result (with curves) or 78 results (smart card based memory) |
| Screen | 2 lines of 40 alphanumerical characters. |
| Keyboard | Barcode reader (optional). |
Samples
| 60 samples/hour (open tube) | |
| Parameters | CBC Mode (16 parameters): WBC, RBC, HGB, HCT, MCV, RDW, MCH, MCHC, PLT, MPV, % and # of LYM, MON and GRA |
| Graphics | LMG histogram, RBC, PLT histograms |
| Sample-Volume | CBC mode: 10 µL |
| Stability | 24 hours (CBC) |
| Operating mode | Open tube mode with 4 position tube holder (Cal, 125 or 500 µL, 3 or 5 mL) |
| Identification | Patient I.D., Sequence# |
| Flags | Pathological flags (WBC, RBC, and PLT) normal limits and counting failure flags |
Results
| Parameters | Precision (cv %) | Linearity |
| WBC | < 2,5% | 0-100 x 10³/mm3 |
| RBC | < 2% | 0-8 x 106/mm3 |
| HGB | < 1.5% | 0-26 g/dl |
| HCT | < 2% | 0-80% |
| PLT (whole blood) | < 5% | 0-2200 x 10³/mm3 |
| PLT (PLT concentrate) | < 5% | 0-4000 x 10³/mm3 |
