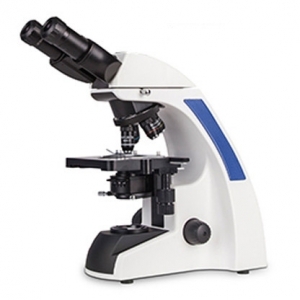

Finite Biological Microscope CM 2000

Category:

Description

Model:                            CM2000

Optical System:              Finite Optical System

Viewing Head:                Seidentopf Binocular Viewing Head, Inclined at 30° Interpupillary 48mm-75mm

Eyepiece:                      Wide Field Eyepiece WF10X/F.N.20mm

Optional Eyepiece:         Wide Field Eyepiece WF16X/F.N.13mm

Wide Field Eyepiece WF20X/F.N.12mm

Nosepiece:                    Backward Quadruple Nosepiece

Backward Quintuple Nosepiece(Optional)

Objective:                    Finite Achromatic Plan Objectives 4X 10X 40X 100X

Condenser:                  Abbe Condenser NA1.25 with Diaphragm

Focusing System:         Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse      Stroke37.7mm/Rotation, Fine Stroke

0.1mm/Rotation, Moving range 24mm

Stage:                          Double Layer Mechanical Stage 142x132mm , Moving Range75mmx50mm

Kohler Illumination:       External Illumination, 3W/LED

Optional Accessory:       Seidentopf Trinocular Viewing Head

Trinocular Adaptor

Packing & Size:              Foam 370x320x510mm

G.W.:                           8kg/18lb

Warranty:                    1 year
