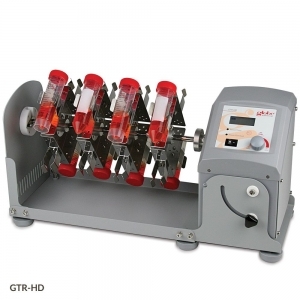

Digital Tube Rotator GTR-HD

Description

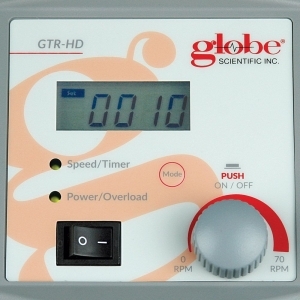

The GTR-HD Tube Rotator provides slow to vigorous mixing of your biological samples and solutions with advanced features you expect. Adjusting the speed and time are easily performed using the parameter adjustment knob on the front panel.

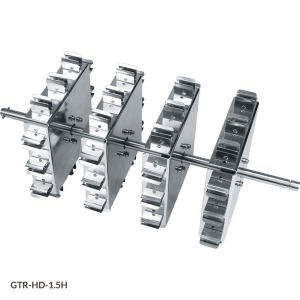

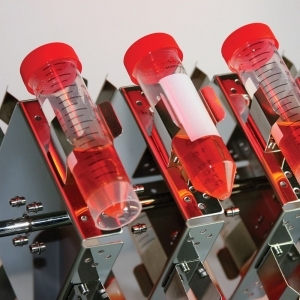

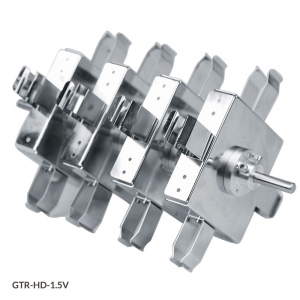

A metal chassis and rotisserie-style tube holders provide a solid, robust design for years of worry free mixing. Swapping the included 50mL vertical holder is a breeze: lift the retention lever on the left, angle the main housing on the right and lift out – replacing would be the opposite process. Both vertical “end over end” mixing and horizontal “rolling” mixing tube holders are available for 1.5 / 2.0mL, 15mL & 50mL tubes.

Features:

Heavy duty metal chassis and tube holder / rotisserie accessories
Digital adjustment of speed and time
LCD display
Speed range from 10 to 70rpm
Wide variety of accessories are available
Cold room friendly
Maintenance free brushless DC motor

Specifications

Specifications	GTR-HD
Tube Capacity	Forty-eight (48) 1.5 / 2.0mL tubes Twenty-four (24) 15mL tubes Twenty-four (24) 50mL tubes
Speed Display	LCD
Timer Display	LCD
Timer	1 – 1199 min
Speed Range	10 – 70rpm
Operation Mode	Continuous or timed
Voltage	100-240V, 50/60Hz
Power	40W
Dimensions (W x D x H)	510 x 220 x 260mm (20.1 x 8.7 x 10.2″)
Operating Temperature	5 to 40°C
Permissible Relative Humidity	80% RH (non-condensing)
Protection Class	IP21
Warranty	2 Years
