DIgital Tube Roller GTR-DVS

Category:

Description

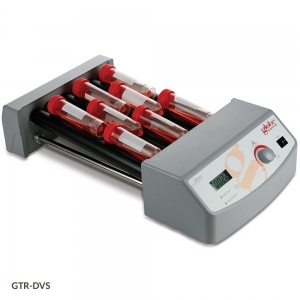

The Digital Tube Roller GTR-DVS was designed for gently mixing a wide range of tubes, containers and bottles. The analog dial can be set anywhere between 10 rpm and 70rpm. In addition to a rolling motion, the rollers are mounted slightly off center to rise and fall in a “see-saw” fashion. These two motions ensure your samples are thoroughly mixed for optimal homogeneity. The six (6) rollers can accommodate up to 8.8 lbs or ten (10) 15/50mL centrifuge tubes.


Features:

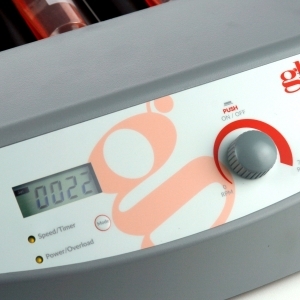

  • LCD Display of seed and time
  • Speed range of 10-70rpm
  • Six (6) roller design for gentle sample agitation and ease of cleaning
  • Continuous or times operation
  • Rolling motion with see-saw movement
  • View both speed and time concurrently
  • Cold room and incubator compatible
  • DC brushless motor is quiet and maintenance free

Specifications

Specifications GTR-DVS
Amplitude 24mm
Motion Rocking and rolling
Max. Load Capacity 4 kg (8.8lbs)
Number of Rollers 6
Roller Size (Length) 280mm (11″)
Speed Range 10 – 70rpm
Timer Yes
Timer Display LCD
Time Setting Range 1-1199 min
Operation Mode Continuous or timed
Voltage 100-240V, 50/60Hz
Power 30W
Dimensions (W x D x H) 260 x 450 x 120mm (10.2 x 17.7 x 4.7″)
Weight 5.1 Kg (11.2 lbs)
Operating Temperature 5 to 40°C
Permissible Relative Humidity 80% RH (non-condensing)
Protection Class IP21
Warranty 2 Years
