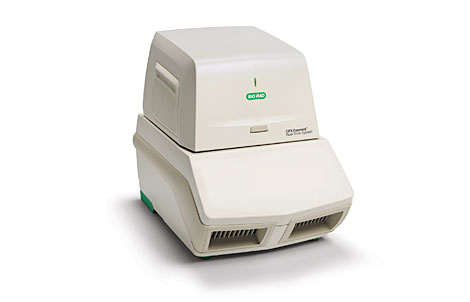

BioRad CFX Connect Real-Time PCR Detection System
Includes:
One BioRad CFX connect complete with all accessories.
The CFX Connect Real-Time PCR Detection System offers two-target analysis, excellent thermal cycler specifications, and the same reliable performance as the CFX96 Touch Real-Time PCR Detection System. The system incorporates innovative optical technologies with powerful software to provide maximal reliability and efficiency for all your real-time PCR needs.
Features:
Specifications:
| Chassis
|
CFX Connect |
| Maximum ramp rate, °C/sec
|
5 |
| Average ramp rate, °C/sec
|
3.3 |
| Heating and cooling method
|
Peltier |
| Lid, °C
|
Heats up to 105 |
| Temperature
|
|
| Range, °C
|
0–100 |
| Accuracy, °C
|
±0.2 of programmed target at 90°C |
| Uniformity, °C
|
±0.4 well-to-well within 10 sec of arrival at 90°C |
| Gradient
|
|
| Operational range, °C
|
30–100 |
| Programmable span, °C
|
1–24 |
| Optical Detection
|
|
| Excitation
|
3 filtered LEDs |
| Detection
|
3 filtered photodiodes |
| Range of excitation/emission wavelengths, nm
|
450–580 |
| Sensitivity
|
Detects 1 copy of target sequence in human genomic DNA |
| Dynamic range
|
10 orders of magnitude |
| Scan Time
|
|
| All channels, sec
|
12 |
| FAM/SYBR® Green only, sec
Software
|
3
|
| Operating systems
|
Windows 7, Windows 8, Windows 10
|
| Multiplex analysis
|
Up to 2 targets per well |
| System
|
|
| Licensed for real-time PCR
|
Yes |
| Sample capacity, wells
|
96 |
| Sample size, µl
|
1–50 (10–25 recommended) |
| Communication interface
|
USB 2.0 |
| Electrical approvals
|
IEC, CE |
| Dimensions (W x L x H), cm/in
|
33 x 46 x 36/13 x 18 x 14 |
| Weight, kg/lb
|
21/47 |
| Lyophilized Multiplex RT-PCR Panels | Custom Pre-Plated RT-PCR Panels |
| Monkeypox | Antibiotic Resistance |
| Gastrointestinal | Nail Fungus |
| Respitory | Wound |
| Sexual Health | Respitory |
| Tropical & Tick-Bone Diseases | Sexual Health |
| UTI |
IDE can customize these panels to your targeted uses and pre-plate them to fit your analyzer!
| Custom Pre-Plated RT-PCR Panels | |||
| Antibiotic Resistance | Nail Fungus | Wound | UTI |
| ACC | Alternaria | Acinetobacter baumannii | Acinetobacter baumannii |
| ampC / ACT | Aspergillus terreus | Anaerococcus vaginalis | Actinobaculum schaalii |
| CTX-M group 1 | Candida albicans | Bacteroids fragilis | Aerococcus urinae |
| drfA1 | Candida auris | Candida auris | Bacteroids fragilis |
| ErmA | Candida dubliniensis | Candida albicans | Candida albicans |
| ErmB | Candida glabrata | Candida dubliniensis | Candida dubliniensis |
| ErmC | Candida lusitaniae (Clavispora lusitaniae) | Candida glabrata | Candida glabrata |
| GES | Candida parapsilosis | Candida parapsilosis | Candida parapsilosis |
| IMP-16 | Candida tropicalis | Candida tropicalis | Candida tropicalis |
| IMP-7 | Epidermophyton floccosum | Citrobacter braakii | Citrobacter braakii |
| KPC | Fusarium solani | Citrobacter freundii | Citrobacter freundii |
| mecA | Microsporum | Citrobacter koseri | Citrobacter koseri |
| mecC | Microsporum audouinii (Microsporum canis, Microsporum ferrugineum) | Corynebacterium striatum | Enterobacter aerogenes (Klebsiella aerogenes) |
| NDM | Trichophyton interdigitale (Trichophyton mentagrophytes) | Enterobacter aerogenes (Klebsiella aerogenes) | Enterobacter cloacae |
| OXA-23 | Enterobacter cloacae | Enterococcus faecalis | |
| OXA-48 | Enterococcus faecalis | Enterococcus faecium | |
| QnrA | Enterococcus faecium | Escherichia coli | |
| QnrS | Escherichia coli | Klebsiella oxytoca | |
| SHV | Finegoldia magna | Klebsiella pneumoniae | |
| sul1 | Klebsiella aerogenes | Morganella morganii | |
| TEM | Klebsiella oxytoca/michiganensis | Mycoplasma genitalium | |
| tetM | Klebsiella pneumoniae | Mycoplasma hominis | |
| VanA | Morganella morganii | Prevotella bivia | |
| VanB | Peptostreptococcus anaerobius | Proteus mirabilis | |
| Peptostreptococcus asaccharolyticus | Proteus vulgaris | ||
| Respitory | Sexual Health | Prevotella bivia | Providencia stuartii |
| Adenovirus | Chlamydia trachomatis | Proteus mirabilis | Pseudomonas aeruginosa |
| Bordatella bronciseptica | Gardernella vaginalis | Pseudomonas aeruginosa | Serratia marcescens |
| Bordatella pertussis/parapertussis | Herpes Simplex 1 | Serratia marcescens | Staphylococcus aureus |
| Chlamydia pneumoniae | Herpes Simplex 2 | Staphylococcus aureus | Staphylococcus epidermidis |
| Corona 229E | Mycoplasma genitalium | Staphylococcus epidermidis | Staphylococcus haemolyticus |
| Corona HKU1 | Mycoplasma hominis | Staphylococcus lugdunensis | Staphylococcus saprophyticus |
| Corona NL63 | Niesseria gonorrhoeae | Staphylococcus saprophyticus | Streptococcus agalactiae |
| Corona OC43 | Treponema pallidum | Streptococcus agalactiae | Streptococcus pneumoniae |
| Enterovirus | Trichomonas vaginalis | Streptococcus pneumoniae | Streptococcus pyogenes |
| Haemophilus influenzae | Ureaplasma parvum | Streptococcus pyogenes | Ureaplasma |
| Human Bocavirus | Ureaplasma urealyticum | ||
| Human metapneumovirus | |||
| Human Parainfluenza 1 | |||
| Human Parainfluenza 2 | |||
| Human Parainfluenza 3 | |||
| Human Parainfluenza 4 | |||
| Human rhinovirus 1/2 | |||
| Human rhinovirus 2/2 | |||
| Influenza A | |||
| Influenza A/H3 | |||
| Influenza A/Hi-2009 | |||
| Influenza B | |||
| Klebsiella pneumoniae | |||
| Legionella pneumophila | |||
| Moraxella catarrhalis | |||
| Mycoplasma pneumonia | |||
| Human Herpes Virus 6 (HHV-6) | |||
| Varizella Zoster Virus (HHV3) | |||
| Epstein-Barr virus (HHV4) | |||
| Cytomegalovirus (HHV5) | |||
| Measles Virus | |||
| MUMPS | |||
| RSV A | |||
| RSV B | |||
| Staphylococcus aureus | |||
| Streptococcus pneumoniae |
