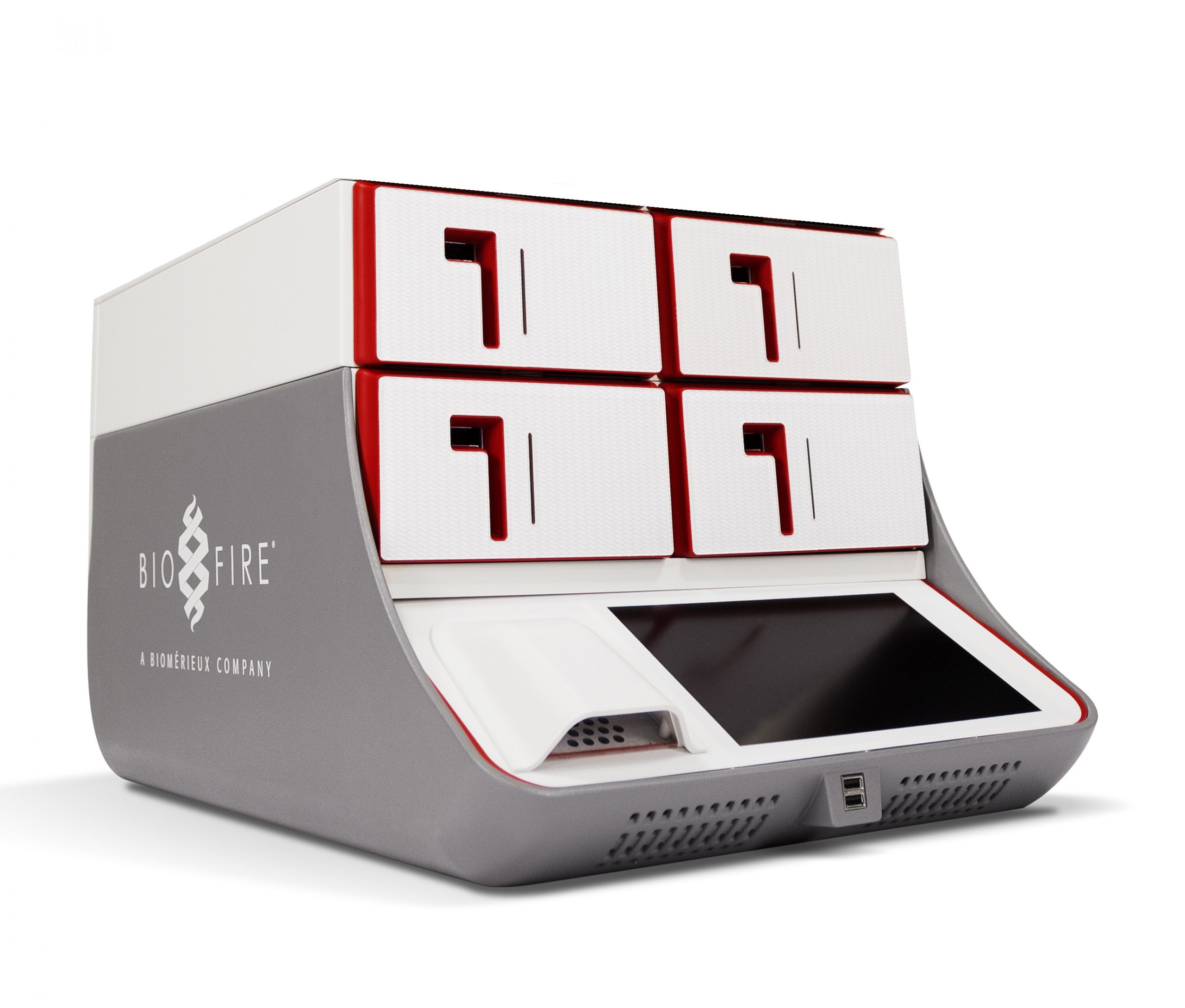

BioFire Torch Filmarray Real-Time PCR Module System
Includes:
One Biofire torch complete with all accessories.
The FilmArray System offers an integrated, comprehensive approach to molecular syndromic infectious disease testing. BioFire offers you the flexibility to configure a system ideal for your laboratory or hospital — you choose the instrument quantity, throughput, and overall footprint.
Features:
Specifications:
| Sample Description | • One sample capacity per FilmArray Torch Module (with up to 12 samples per FilmArray Torch) |
| Run Time | • Sample run time about one hour |
| User Interface | • System Base with touch screen and barcode scanner |
| Data Output | • Automatic analysis with end-of-run interpretive reports |
| Fluorescence Acquisition | • Single color optics module: 475nm excitation, 545nm emission, and sensor imaging |
| Temperature Control | • Operating temperature 15°C to 30°C • Peltier devices: • Ambient to 100°C • Ramp rate from 0.1–0.5°C /sec on melt |
| Operations Specification | • 15°C to 30°C @ 20 to 80% relative humidity (noncondensing) • -16m to 3048m • Indoor use only |
| Shipping Specifications | • -30°C to 38°C @ 5 to 85% relative humidity (noncondensing) • -16m to 10,600m |
| Fuse | • 250V 3.15A Type T (Modules) • 250V 10A Type T (System Base) |
| Dimensions and Weight | • 18 x 29 x 11.5 in (45.8 x 73.7 x 29.2 cm) (W x D x H; System Base only) • 4.5 in (11.4 cm) (H; Modules only) • 34 in (86.4 cm) max height (12 Modules) • Weight: Approximately 268 lbs (121.6 kg) maximum: • System Base – 36 lbs (16.3 kg) • Modules – 15 lbs (6.8 kg) each • Duplex (Module enclosure) – 6.5 lbs (~3 kg) each |
| EMC Requirements | • The FilmArray® Torch complies with the emission and immunity requirements in IEC 61326: Electrical equipment for measurement, control and laboratory use – EMC requirements – Part 1: General requirements. |
| Safety Requirements | • The FilmArray Torch complies with IEC 61010-2-101: Safety requirements for electrical equipment for measurement, control and laboratory use – Part 2-101: Particular requirements for in vitro diagnostic (IVD) medical equipment |
| CPU | • Intel® Core™ i7 4770S 3.1 GHz or faster |
| Storage and Memory | • 512 GB hard drive or greater • 16 GB RAM or greater |
| Interface and Peripherals | System Base • 12+1 Ethernet network interfaces • 4 USB connections or more Module • One Ethernet network interface |
| Display | • LCD • 10.6” diagonal (26.9 cm) • 1280 x 768 resolution • Capacitive touch screen interface |
| Operating System | • Microsoft® Windows® 7 Embedded OS |
| Lyophilized Multiplex RT-PCR Panels | Custom Pre-Plated RT-PCR Panels |
| Monkeypox | Antibiotic Resistance |
| Gastrointestinal | Nail Fungus |
| Respitory | Wound |
| Sexual Health | Respitory |
| Tropical & Tick-Bone Diseases | Sexual Health |
| UTI |
| Custom Pre-Plated RT-PCR Panels | |||
| Antibiotic Resistance | Nail Fungus | Wound | UTI |
| ACC | Alternaria | Acinetobacter baumannii | Acinetobacter baumannii |
| ampC / ACT | Aspergillus terreus | Anaerococcus vaginalis | Actinobaculum schaalii |
| CTX-M group 1 | Candida albicans | Bacteroids fragilis | Aerococcus urinae |
| drfA1 | Candida auris | Candida auris | Bacteroids fragilis |
| ErmA | Candida dubliniensis | Candida albicans | Candida albicans |
| ErmB | Candida glabrata | Candida dubliniensis | Candida dubliniensis |
| ErmC | Candida lusitaniae (Clavispora lusitaniae) | Candida glabrata | Candida glabrata |
| GES | Candida parapsilosis | Candida parapsilosis | Candida parapsilosis |
| IMP-16 | Candida tropicalis | Candida tropicalis | Candida tropicalis |
| IMP-7 | Epidermophyton floccosum | Citrobacter braakii | Citrobacter braakii |
| KPC | Fusarium solani | Citrobacter freundii | Citrobacter freundii |
| mecA | Microsporum | Citrobacter koseri | Citrobacter koseri |
| mecC | Microsporum audouinii (Microsporum canis, Microsporum ferrugineum) | Corynebacterium striatum | Enterobacter aerogenes (Klebsiella aerogenes) |
| NDM | Trichophyton interdigitale (Trichophyton mentagrophytes) | Enterobacter aerogenes (Klebsiella aerogenes) | Enterobacter cloacae |
| OXA-23 | Enterobacter cloacae | Enterococcus faecalis | |
| OXA-48 | Enterococcus faecalis | Enterococcus faecium | |
| QnrA | Enterococcus faecium | Escherichia coli | |
| QnrS | Escherichia coli | Klebsiella oxytoca | |
| SHV | Finegoldia magna | Klebsiella pneumoniae | |
| sul1 | Klebsiella aerogenes | Morganella morganii | |
| TEM | Klebsiella oxytoca/michiganensis | Mycoplasma genitalium | |
| tetM | Klebsiella pneumoniae | Mycoplasma hominis | |
| VanA | Morganella morganii | Prevotella bivia | |
| VanB | Peptostreptococcus anaerobius | Proteus mirabilis | |
| Peptostreptococcus asaccharolyticus | Proteus vulgaris | ||
| Respitory | Sexual Health | Prevotella bivia | Providencia stuartii |
| Adenovirus | Chlamydia trachomatis | Proteus mirabilis | Pseudomonas aeruginosa |
| Bordatella bronciseptica | Gardernella vaginalis | Pseudomonas aeruginosa | Serratia marcescens |
| Bordatella pertussis/parapertussis | Herpes Simplex 1 | Serratia marcescens | Staphylococcus aureus |
| Chlamydia pneumoniae | Herpes Simplex 2 | Staphylococcus aureus | Staphylococcus epidermidis |
| Corona 229E | Mycoplasma genitalium | Staphylococcus epidermidis | Staphylococcus haemolyticus |
| Corona HKU1 | Mycoplasma hominis | Staphylococcus lugdunensis | Staphylococcus saprophyticus |
| Corona NL63 | Niesseria gonorrhoeae | Staphylococcus saprophyticus | Streptococcus agalactiae |
| Corona OC43 | Treponema pallidum | Streptococcus agalactiae | Streptococcus pneumoniae |
| Enterovirus | Trichomonas vaginalis | Streptococcus pneumoniae | Streptococcus pyogenes |
| Haemophilus influenzae | Ureaplasma parvum | Streptococcus pyogenes | Ureaplasma |
| Human Bocavirus | Ureaplasma urealyticum | ||
| Human metapneumovirus | |||
| Human Parainfluenza 1 | |||
| Human Parainfluenza 2 | |||
| Human Parainfluenza 3 | |||
| Human Parainfluenza 4 | |||
| Human rhinovirus 1/2 | |||
| Human rhinovirus 2/2 | |||
| Influenza A | |||
| Influenza A/H3 | |||
| Influenza A/Hi-2009 | |||
| Influenza B | |||
| Klebsiella pneumoniae | |||
| Legionella pneumophila | |||
| Moraxella catarrhalis | |||
| Mycoplasma pneumonia | |||
| Human Herpes Virus 6 (HHV-6) | |||
| Varizella Zoster Virus (HHV3) | |||
| Epstein-Barr virus (HHV4) | |||
| Cytomegalovirus (HHV5) | |||
| Measles Virus | |||
| MUMPS | |||
| RSV A | |||
| RSV B | |||
| Staphylococcus aureus | |||
| Streptococcus pneumoniae |
