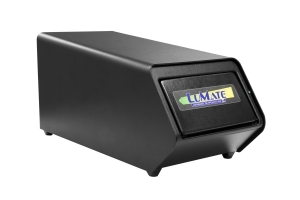

Awareness Technology Lumate 4400 Microplate Luminometer

Description

Lumate is a compact microplate glow luminometer. Its streamlined design with minimal footprint offers superb optics to fit any size lab bench.

Lumate teams up with your PC to provide full access to high level software for curve fitting, reporting, and data storage to meet the requirements of modern laboratories. Instrument and software come ready to ‘plug and play’ with your PC.

Economical- Self referencing – User programmable CLIA for every Lab.
The increased range and sensitivity of CLIA (Chemi Luminescent Immuno Assaays) is no longer just for high volume labs. LuMate brings this technology to any size lab. LuMate reads a 96-well microplate and calculates results instantly and automatically. LuMate is an open system that permits users to program a wide variety of glow type CLIAs.

Easy and automatic
Simply select an assay from the stored menu and load the plate. LuMate automatically reads the plate, precisely measuring and reporting the light output from each well.
LuMate runs hormones and many other applications, with on-board calculations for point-to-point, linear and log regressions, and log logit modes. A built-in reference assures continuous calibration.

Additional information

Manufacturer	Awareness Technology

Specifications

SPECIFICATIONS

	Optical
Detection Mode	Glow luminescence
Sensitivity/Detection limit	HRP 1x 10 -18 moles, ALP 1×10-21 moles.
Linear Dynamic Range	10 6 RLU
Cross talk	Less than 2.5 x 10-4
Detector	Photomultiplier (PMT)
Spectral Response Range	300 – 650nm.
Peak Wave length	400 nm.
Vessel	96 wells in strip tray or plate.
	Electronic
PC connection	USB Port.
Microprocessor	eZ80.
Plate Transport	Stepper motor.
Power Requirements	100V – 250V AC, 50 – 60Hz (auto-sensing).
	Software
PC interface	LuMate® Manager Software – included, PC not included
Calculation Modes	Multi-point calibration with Regression or Point-to-Point curve fit with curve storage option, Relative Light Units.
Additional Features	User-programmable open system with curve plotting and editing.
	Selectable plate formating with duplicates and end-reading selections.
	Multiple timed reading options.
	Automatic interpretation options.
	Alphanumeric test naming.
	Flags and error messages.
	Other
Certifications	NRTL listed, CE mark.
Enclosure	All metal enclosure
Dimensions	Approx. 7.5×8.0x16.5(19×20.3x42cm). Weighs 11lbs.(5kg)
