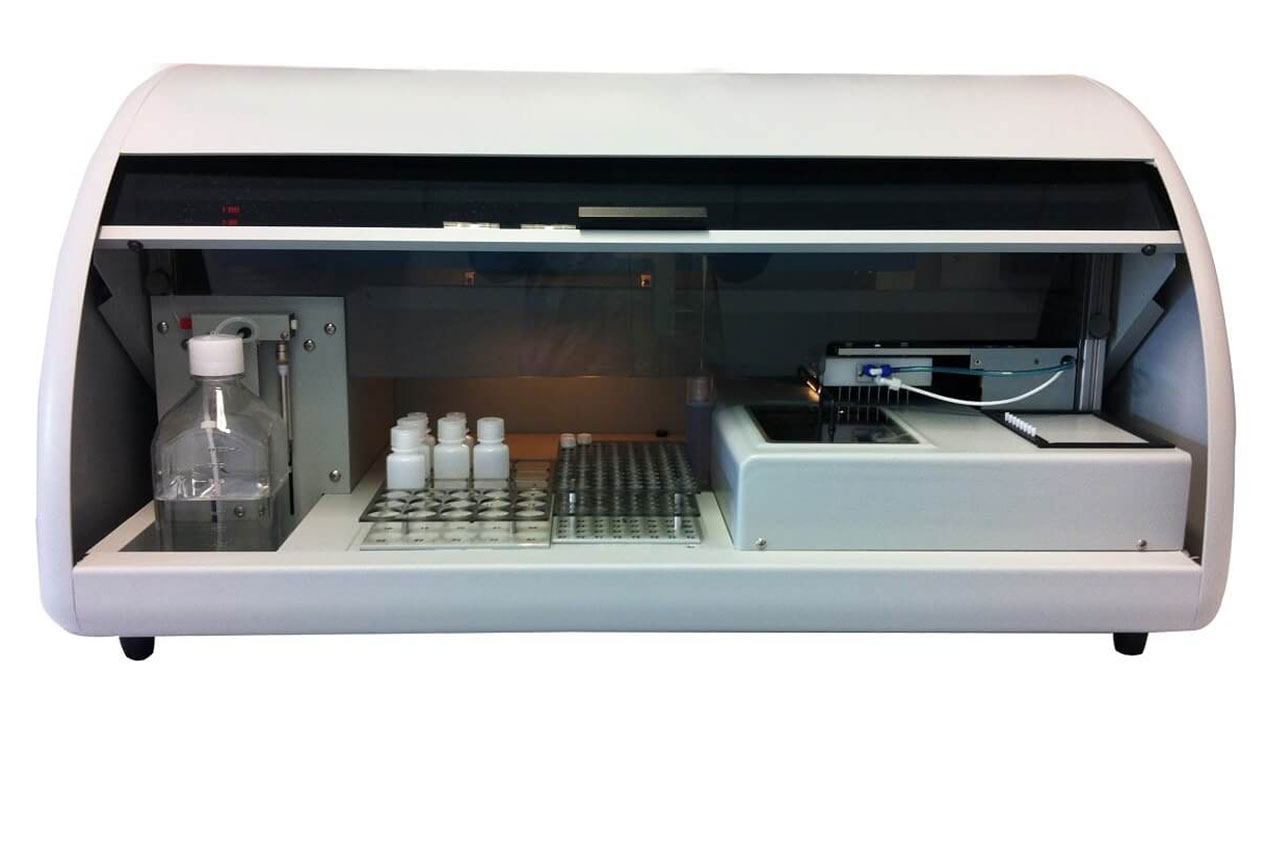

Awareness Technology Chem Well 2910 Chemistry Analyzer

Description

Programmable Open System

The Awareness Technologies ChemWell 2910 Automated EIA and Chemistry Analyzer is a fully automated system that runs both enzyme immunoassays and general chemistries in standard microwells. Its intuitive design allows the user to easily set up assays, perform routine jobs, quality control and index calculations to meet the demands of any modern laboratory.

With a completely open system that is simple to program, the ChemWell 2910 washes volumes, increases the number of washes, and even directs the probe to pick up and dispense a probe cleaning solution after each specimen. For added security, a password can be set.

Additional information

Manufacturer	Awareness Technology

Features/Benefits

PC-controlled fully automated ELISA/biochemistry Analyzer
Automated programmable capabilities: reagent dispensing, pre-dilutions, timed incubation & colorimetric reading, mixing, washing
Processes endpoint or kinetic reactions in ELISA microwell plates
4 channel optical system, 8 filter wheel (340-750 nm) Customizable filter wavelengths available
Plate/Well Integrated thermostat 25°C, 37°C, ambient
Reactions take place in standard plastic microwells/strips
Applications in clinical and veterinary testing; environmental testing, analysis of food and water; and life science research
QC Tracking SW enables controls and calibrators to be tracked using Levey-Jennings graph

Specifications


Typical throughput	up to 200 endpoint reactions per hour, up to 170 kinetic reactions per hour
Dimensions	36.25 (92.1cm) left to right, 18.75 (47.6 cm) height, 21.5 (54.6 cm) front-to-back Approximate weight 100 lbs (45kg)
Capabilities	Dilution, pre-dilution, dispensing single or multiple reagents
Probes	316 stainless steel for maximum reagent compatibility, level sensing
Maximum number of specimens	96
Maximum number of reagents	Typically 27 to 44 or more (you can program reagents to go in the sample rack; assorted replaceable racks and custom designed racks are available for various bottle sizes)
Standard reagent rack	27
Reaction Vessel	Standard micro wells, strips or plates
Instrument bottles	2L wash with low volume warning sensor, 1L rinse (or second wash) with low volume warning sensor, 2L waste bottle with full sensor. 1L priming bottle
EIA Mode	Incubation timing is software controlled; set each row of 8 to time separately or time the whole plate together.
Thermal control	Well, probe, and tubing; ambient or 37C (other options also available)
Reagant cooling	RCA, Reagent Cooling Accessory optional) cools 12 to 15C below ambient through peltier thermoelectric modules connected to an external controller
Wash head	8-probe, automatic prime and rinse
Programs	Create and run user programmable protocols, aspirate, dispense, soak, mix…
Optical design	Reads absorbance in 4 simultaneous channels, NIST traceable calibration user selected monochromatic or biochromatic results 8 position filter wheels: 340, 405, 450, 505, 545, 600, 630, 700 or custom
Interference filters	Long life, hard coat, ion assisted deposition, 10nm typical half bandpass
Linear Range	-0.2 to 3.0A
Photometer Accuracy	+/- 1% or better
Certifications	NRTL Listed, CE Marked
