Awarenes Technology ChemWell-T Chemistry Analyzer

Contact us with any questions.

Thank you!

Request Quote

Description

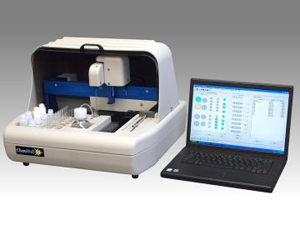

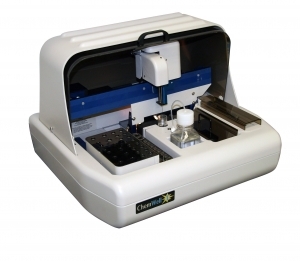

The Awareness Technology ChemWell T Chemistry & Turbidimetric Analyzer is a fully automated random access analyzer. Specially designed for biochemistry and immuno-turbidimetric applications, the ChemWell-T works best for small throughput and specialty labs. The analyzer can also be used as a backup analyzer.

A fully open system, the ChemWell-T is controlled by a computer that provides large storage for test scheduling, patient data and quality control, as well as personal reporting formatting per test or a history of tests. The intuitive software also delivers great performance with track gauge and control, self-monitoring, and processing for all biochemical profiles and turbidimetric assays.

The ChemWell-T chemistry analyzer is a compact system with high performance capacities. This Awareness Technology analyzer can process 100 tests per hour with continuous load, random access, automatic dilution, and pre-dilution for samples out of range. Additionally, the system has flexible configurations of the universal rack, and includes 6 wavelengths with the option to add 2 more.

ChemWell-T analyzers provide outstanding value from the day of purchase through daily operation, and through the instrument’s entire life cycle.

Additional information

Manufacturer

Features/Benefits

  • Track gauge and control via software
  • Self-monitoring of main modules
  • Processes all the biochemical profile and turbidimetric assays
  • Includes 6 wavelengths, with option to add 2 more
  • Flexible configurations of the universal rack
  • Ability to store and modify curves

Specifications

General

Typical Throughput: Up to 100 tests per hour.

Typical Reaction Volume: 250 µL.

Reaction Vessel: 5-well cuvettes.

Maximum Reaction Volume: 500 µL.

Dimensions: 21” (53 cm) width, 15.5” (40 cm) height, 20” (50 cm) depth.

Weight: 37 lbs (15 kg).

Reagent & Sample Handling

Functions: Dilution, pre-dilution, dispensing samples & reagents.

Syringe Pump: Capacity 500 µL, range 2 µL – 450 µL. Settings in increments of 0.5 µL.

Probe: 316 L stainless steel for maximum reagent compatibility, level sensing.

Mixing: Probe oscillation, time & speed adjustable.

Precision for Volumes < 5 µL: < 3% CV.

Precision for Volumes > 5 µL: < 2% CV.

Max. number of Reactions: 40

Max. numbers of Reagents/Samples: Combined 35 in standard rack. Assorted replaceable racks. Total can be increased with custom design racks.

Instrument Bottles: 250 mL priming bottle.

Incubating, Timing & Temperature Control

Reaction Temperature: From ambient to 40ºC. Incubation timing is software controlled & automatically optimised.

Reagent Cooling: Reagent cooling is standard; cools 8º to 12ºC below ambient through Peltier thermoelectric module.

Reading

Optical Design: User-selected monochromatic or bichromatic results. 8 position filter wheel with the following standard filters: 340, 405, 505, 545, 580, 630, + 2 optional. Custom configurations available.

Interference Filters: Long life, hard coat, ion assisted deposition, 10 nm typical half bandpass.

Linear Range: 0.0 to 3.0A.

Photometer Accuracy: + (1% of the reading + 0.005A) from 0 to 1.0A.

+ (2% of the reading + 0.005A) from 1.0 to 3.0A.

Software

Format: USB with internet upgrades.

Supports: Windows® XP, Vista or 7 (computer not supplied).

Recommended System: Windows® XP, Vista or 7. 512MB SDRAM, CD drive, USB port.

Calculation Modes: Absorbance, single standard, factor, fixed time kinetics, kinetics by standard or factor, multi-calibrator point-to-point, linear regressions, cubic spline & percentage absorbance.

Self Monitoring Modes: Lamp, filters, reagent levels, mechanical function & more.

QC Options: Store control data, print Levey-Jennings or QC range plots. Supplied with programmed protocols for Megazyme test kits.

Certifications: NRTL listed, CE marked
