Applied Biosystems ABI 7500 Real-Time PCR System

Contact us with any questions.

Thank you!

Description

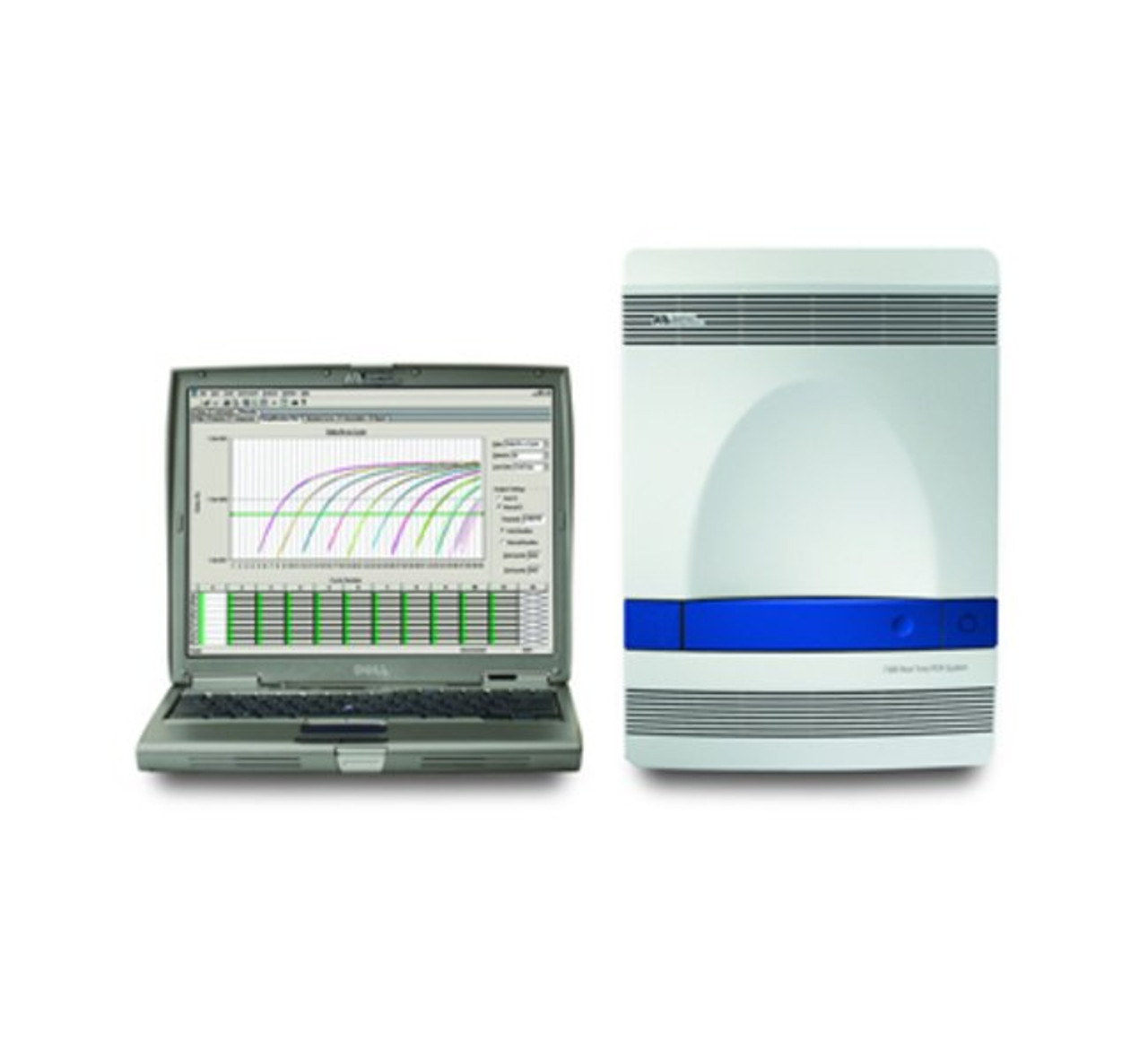

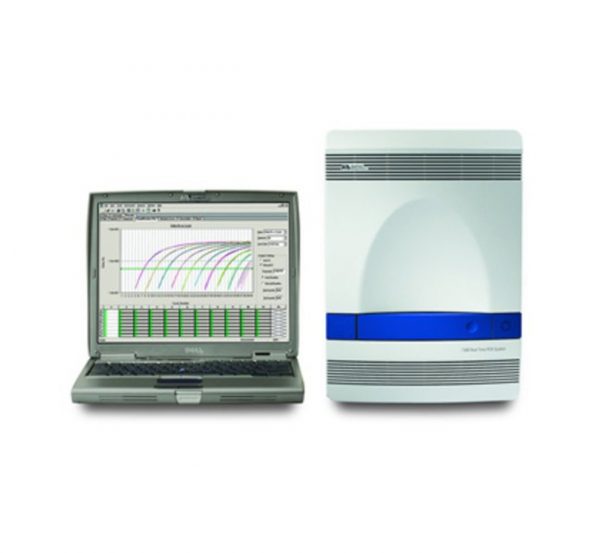

Applied Biosystems ABI 7500 Real-Time PCR System

Includes:

One ABI 7500 RT-PCR complete with all accessories.

The 7500 Real-Time PCR System is a powerful platform for labs requiring superior performance and maximum dye versatility. This system is a sophisticated platform for users who require extended capabilities and maximum versatility. The 3rd generation platform features an innovative optical system that enhances sensitivity and lets you access a broader range of fluorophores. The variable excitation capability allows greater sensitivity for longer wavelength (red) dyes.

Features/Benefits

Features:

  • Powerful, five-color platform is calibrated for the broadest range of dyes available: FAM™⁄SYBR™ Green I, VIC™⁄JOE™, NED™⁄ TAMRA™⁄ Cy3™, ROX™⁄Texas Red™, and Cy5™ dyes
  • Specialized optical system enables easy and accurate calibration to new dyes without requiring the addition of new filter sets
  • Advanced multi-componenting algorithm minimizes spectral crosstalk – superior for multiplexing
  • User-friendly software includes plate set-up wizards, multi-plate data viewing capabilities, and advanced analysis tools to make data processing simple and straightforward



Specifications

Specifications:



Calibrated Dye SYBR™ Green I, ROX™, NED™, TAMRA™, JOE™, Texas Red™, Cy5™, VIC™, FAM™, Cy3™
Includes Notebook Computer
Reaction Speed Standard
External Computer Notebook: Intel Core 2 Duo T5500 (1.66 GHz), 8X DVD, 80 GB HD, 1.0 G DDR2-533 MHz SDRAM
For Use With (Equipment) 7500 System
Max. Power 950 W
Passive Reference Dye ROX (Separate Tube), No ROX, ROX (Pre-mixed)
Precision 99.7% confidence (5000 & 10000 copies)
Sample Ramp Rate ± 1.1°C⁄sec
Software Compatibility Primer Express, 21 CFR Part 11 Module (optional), 7500 System Software (RQ included)
Temperature Range (Metric) 4-100°C
Thermal Cycling System Peltier-Based System
Dimensions Width: 34 cm (13.39 in), Depth: 45 cm (17.72 in), Height: 49 cm (19.29 in)
Voltage 120V



Content And Storage Ambient
Max. Heating Rate (Thermal Block) 2.5°C
Dynamic Range 9 logs
Format 96-well plate
High-throughput Compatibility Multiplexing
Optics CCD Camera, 5 excitation filters, Tungsten-halogen lamp, 5 emission filters
Peak Block Ramp Rate 2.5°C⁄sec
Reaction Volume Range 20-100 µl
Sensitivity 1 copy of RNase P gene (human genomic DNA)
Temperature Accuracy 0.25°C (35°C to 95°C after 3 min)
Temperature Uniformity 0.50°C (after 30 sec)
Throughput 4 to 5-96-well plates per 8-hr day
Weight 75 lbs





PCR Panels

Lyophilized Multiplex RT-PCR Panels Custom Pre-Plated RT-PCR Panels
Monkeypox Antibiotic Resistance
Gastrointestinal Nail Fungus
Respitory Wound
Sexual Health Respitory
Tropical & Tick-Bone Diseases Sexual Health
UTI

Custom Pre-Plated RT-PCR Panels

Custom Pre-Plated RT-PCR Panels
Antibiotic Resistance Nail Fungus Wound UTI
ACC Alternaria Acinetobacter baumannii Acinetobacter baumannii
ampC / ACT Aspergillus terreus Anaerococcus vaginalis Actinobaculum schaalii
CTX-M group 1 Candida albicans Bacteroids fragilis Aerococcus urinae
drfA1 Candida auris Candida auris Bacteroids fragilis
ErmA Candida dubliniensis Candida albicans Candida albicans
ErmB Candida glabrata Candida dubliniensis Candida dubliniensis
ErmC Candida lusitaniae (Clavispora lusitaniae) Candida glabrata Candida glabrata
GES Candida parapsilosis Candida parapsilosis Candida parapsilosis
IMP-16 Candida tropicalis Candida tropicalis Candida tropicalis
IMP-7 Epidermophyton floccosum Citrobacter braakii Citrobacter braakii
KPC Fusarium solani Citrobacter freundii Citrobacter freundii
mecA Microsporum Citrobacter koseri Citrobacter koseri
mecC Microsporum audouinii (Microsporum canis, Microsporum ferrugineum) Corynebacterium striatum Enterobacter aerogenes (Klebsiella aerogenes)
NDM Trichophyton interdigitale (Trichophyton mentagrophytes) Enterobacter aerogenes (Klebsiella aerogenes) Enterobacter cloacae
OXA-23 Enterobacter cloacae Enterococcus faecalis
OXA-48 Enterococcus faecalis Enterococcus faecium
QnrA Enterococcus faecium Escherichia coli
QnrS Escherichia coli Klebsiella oxytoca
SHV Finegoldia magna Klebsiella pneumoniae
sul1 Klebsiella aerogenes Morganella morganii
TEM Klebsiella oxytoca/michiganensis Mycoplasma genitalium
tetM Klebsiella pneumoniae Mycoplasma hominis
VanA Morganella morganii Prevotella bivia
VanB Peptostreptococcus anaerobius Proteus mirabilis
Peptostreptococcus asaccharolyticus Proteus vulgaris
Respitory Sexual Health Prevotella bivia Providencia stuartii
Adenovirus Chlamydia trachomatis Proteus mirabilis Pseudomonas aeruginosa
Bordatella bronciseptica Gardernella vaginalis Pseudomonas aeruginosa Serratia marcescens
Bordatella pertussis/parapertussis Herpes Simplex 1 Serratia marcescens Staphylococcus aureus
Chlamydia pneumoniae Herpes Simplex 2 Staphylococcus aureus Staphylococcus epidermidis
Corona 229E Mycoplasma genitalium Staphylococcus epidermidis Staphylococcus haemolyticus
Corona HKU1 Mycoplasma hominis Staphylococcus lugdunensis Staphylococcus saprophyticus
Corona NL63 Niesseria gonorrhoeae Staphylococcus saprophyticus Streptococcus agalactiae
Corona OC43 Treponema pallidum Streptococcus agalactiae Streptococcus pneumoniae
Enterovirus Trichomonas vaginalis Streptococcus pneumoniae Streptococcus pyogenes
Haemophilus influenzae Ureaplasma parvum Streptococcus pyogenes Ureaplasma
Human Bocavirus Ureaplasma urealyticum
Human metapneumovirus
Human Parainfluenza 1
Human Parainfluenza 2
Human Parainfluenza 3
Human Parainfluenza 4
Human rhinovirus 1/2
Human rhinovirus 2/2
Influenza A
Influenza A/H3
Influenza A/Hi-2009
Influenza B
Klebsiella pneumoniae
Legionella pneumophila
Moraxella catarrhalis
Mycoplasma pneumonia
Human Herpes Virus 6 (HHV-6)
Varizella Zoster Virus (HHV3)
Epstein-Barr virus (HHV4)
Cytomegalovirus (HHV5)
Measles Virus
MUMPS
RSV A
RSV B
Staphylococcus aureus
Streptococcus pneumoniae
