Description

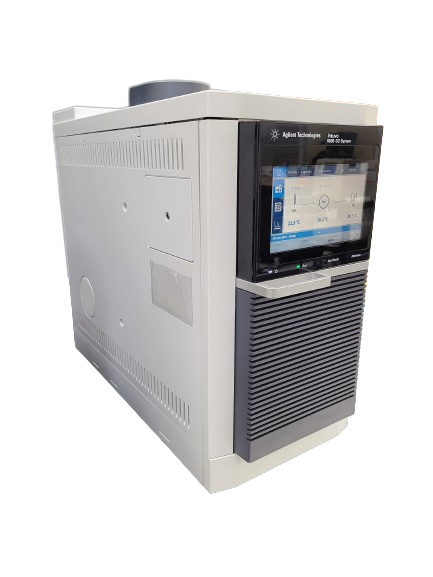

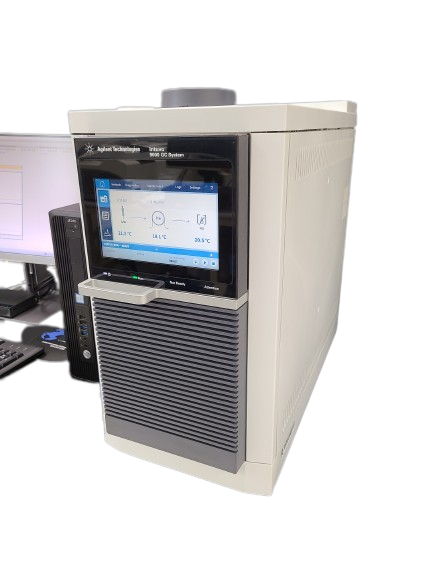

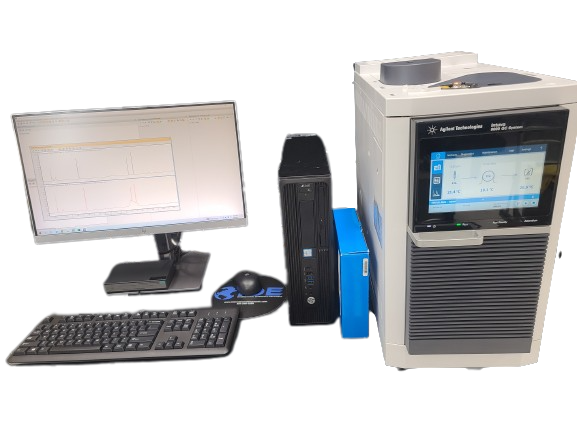

Agilent Technologies Intuvo 9000 Gas Chromatograph System
Includes:
-One Intuvo 9000 gas chromatograph system G3950A

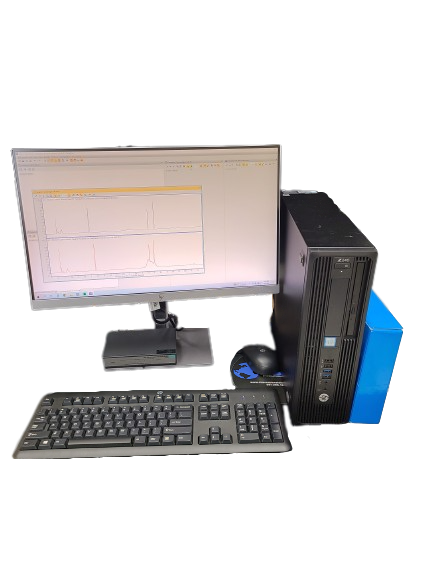

-HP Z240 PC
-HP E223 Monitor
– MassHunter 9.0 Software
Agilent Technologies Intuvo 9000 Gas Chromatograph System
Features/Benefits
The Intuvo 9000 Gas Chromatography (GC) System is designed for fast gas chromatography and high throughput while simplifying your laboratory workflow. Eliminate column maintenance and change columns in less than a minute with Intuvo’s click-and-run connections. Ballistic direct column heating offers faster GC cycle times and improves reproduction.
- Guard Chips prevent column contamination, protecting downstream components and increasing column life
- Intuvo no-trim GC columns require no maintenance
- Direct heating oven delivers linear and repeatable temperature ramps from 30 °C to 450 °C at 250 °C/min
- Ferrule-free, click-and-run connections allow any operator, regardless of experience, to make completely leak-free connections
- Innovative flow path provides the ability to configure the GC flow path as needed, making backflush installation simple
- Smart ID Keys attached to critical flow path components provide information such as configuration and column age with default parameters for configuration
- Intelligent troubleshooting routines diagnose GC system problems by measuring over 100 parameters in real time and provide a step-by-step solution guide in an easy-to-read format
- Large touchscreen control with the ability to deliver instrument information wireless through secure networks
- Uses less than half the power of a conventional GC and can be plugged into any outlet without changing the wiring of the lab
- Ideal platform for high-throughput or high-speed gas chromatography with fast heating and cool down
- Smaller footprint than most lab GC systems with a similar range of functionality and performance to optimize valuable bench space
- Gas Saver, smaller column dimensions, and faster cycle times can result in less helium consumption compared to conventional GC systems
- Compatible with Agilent 5977, 7000, and 7010 mass spectrometer systems
- Received the independent ACT label that provides information about the environmental impact of the product throughout its life cycle
Specifications
| Capillary Flow Technology (CFT) | · Integrated (backflush, splitter) |
| Detectors | · 2 |
| Dimensions (WxDxH) | · 27 cm x 69 cm x 51 cm |
| Dual Simultaneous Injection | · No |
| GC Detector MDLs | · Premium |
| GC Diagnostics – Leak Check | · Autonomous, hands-free |
| GC/MS Compatibility | · Single quadrupole
· Triple quadrupole |
| Inlets | · 1 |
| Maximum Temperature Ramp Rate | · 250 °C/min |
| Operating Temperature Range | · +10 °C above ambient to 450 °C |
| Oven Cool Down | · 450 °C to 50 °C in less than 3 minutes (22 °C ambient) |
| Peak Area Repeatability | · <1% RSD |
| Retention Time Repeatability | · <0.008% |
| Typical Pressure Control | · 0.001 psi |
| Valves | · 1 |
