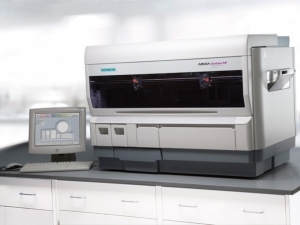

Siemens ADVIA Centaur CP Immunoassay System

Description

The ADVIA Centaur CP System is an immunoassay test instrument for mid-volume labs. Its broad menu lets you both expand and consolidate – by bringing a wide range of assays to one workstation, eliminating redundant systems. The ADVIA Centaur CP System is easy to operate, increases efficiency and streamlines workflow. It offers the excellent sensitivity and specificity expected from direct Chemiluminescent with Acridinium Ester technology. The ADVIA Centaur CP Immunoassay System is a mid-volume, high-throughput bench top system that enhances your in-house test capability. With its broad menu and short Turn Around Times (TAT), you can do more — without compromising efficiency, productivity, or quality. And it features the superior sensitivity and specificity you expect of Chemiluminescent with Advanced Acridinium Ester Technology.

Additional information

Manufacturer	Siemens

Specifications

Overview
System Description	Random access immunoassay system
Throughput	Up to 180 tests per hour in batch or random access mode
Time To First Result	15 minutes
15 minutes	15
Total Assay Capability	100
Samples and Sample Handling
Sample Tubes	5 mL, 7 mL, 10 mL, 1mL cups, microtainer tubes
Sample Capacity	84 samples, continuous loading in 12-position sample racks
Walk Away Tme	One hour minimum
STAT Handling	Dedicated STAT position plus additional keyboard option for scheduling STATS individually
Sample Types	Serum, plasma, urine – assay dependent
Sample Integrity Control	Pressure based level sensing, short sample detection and flagging, clot detection and flagging, foamy sample detection
Sample Carryover	Eliminated by consumable ADVIA Centaur pipette tips
Sample Tips	ADVIA Centaur type, 480 on board, automatic tracking and flagging of inventory
Barcodes
Formats Supported	Code 128, Code 39, Codabar, Interleaved 2 of 5 (any or all symbologies may be active at one time)
Reagents and Reagent Handling
Reagent Cooling	10°C +-2
Reagent Integrity Control	Barcode reagent identification, automatic inventory tracking and flagging, calibration validity tracked and flagged, reagent on board residency tracked and flagged, reagent expired/low flags
Ancillary Reagents	10-position cooled storage for ADVIA Centaur reagent ancillaries
Cuvettes
Type	ADVIA Centaur cuvettes
On Board Capacity	400
Continuous Operation
Loading/unloading of samples and consumables do not cause system interruption	Includes: Sample racks, STATS, reagent packs, ancillary reagents pack, reaction cuvettes, sample pipette tips, calibrators, controls, wash fluid, water
User Interface
Operating System	Microsoft^® Windows^® XP English Professional
Monitor	15″ diagonal LCD touch sensitive screen
Results Editing
Viewing and Editing	Results available at all times, sortable by SID test and date, user has the option to evaluate, verify and release results prior to printing or reporting to LIS. User edited results are flagged on audit trail
Assay Calibration
Identification	Barcode labels containing lot specific data, human readable and system readable through hand held barcode scanner
Status	Calibration Status logged and flagged, including advance notice of pending expiration, user-defined processes for response to calibration expiration
Quality Control
Package	Advanced QC package for long term monitoring including L-J plots and Westgard rules
Levels	0-9 control levels per assay
Control Definitions	User defined
Results Storage	25,000 control, patient and event results can be stored on line
Environmental
Operating Temperature	18-30°C
Operating Humidity	20%-85% RH non condensing
Electrical	100-240v, 50/60Hz
Dimensions	Height: 32 in/81 cm Width: 43 in/107 cm Depth: 29 in/74 cm (excludes monitor and accessories)
Weight	366lbs/166kg (includes monitor and accessories)

Test Menu

Reproductive Endocrinology	Therapeutic Drug Monitoring	Oncology
AFP	Carbamazepine	AFP
Anti-Müllerian Hormone*	Digitoxin	CA 125II‡
DHEAS	Digoxin	CA 15-3
Enhanced Estradiol	Gentamicin	CA 19-9
Free βhCG‡‡	Phenobarbital	Calcitonin*
FSH	Phenytoin	CEA
hCG	Theophylline	Complexed PSA
LH	Tobramycin	PSA
PAPP-A‡‡	Valproic Acid	Serum HER-2/neu
PIGF*	Vancomycin
Progesterone
Prolactin	Immunosuppressant Drugs	Inflammation
SHBG	Cyclosporine	IgE, Total
sFLT-1*	Everolimus*	LBP*
Testosterone II	Sirolumus*	IL-6*

Thyroid	ToRCH	Hepatitis
Anti-Tg	CMV IgG	Anti-HBs-2
Anti-TPO	CMV IgM*	HAV IgM
Free T3	Herpes-1 IgG	HAV Total
Free T4	Herpes-2 IgG	HBc IgM
T Uptake	Rubella IgG	HBc Total
Total T3	Rubella IgM	HBsAg Confirmatory
Total T4	Toxoplasma IgG	HCV**
TSH3-Ultra	Toxoplasma IgM*
TSH

Cardiac	Anemia	Special ID
BNP	Active B12	EBV-EBNA IgG*
CKMB	EPO*	EBV-VCA IgG*
High-Sensitivity Troponin I	Ferritin	EBV-VCA IgM*
Myoglobin	Folate	Syphilis
Tnl-Ultra	RBC Folate
	Vitamin B12

Metabolic	Diabetes	HIV
Cortisol	C-Peptide	HIV 1/0/2 enhanced (EHIV)§
Homocysteine	Insulin

Bone Metabolism	Autoimmune
Intact PTH	Anti-CCP
